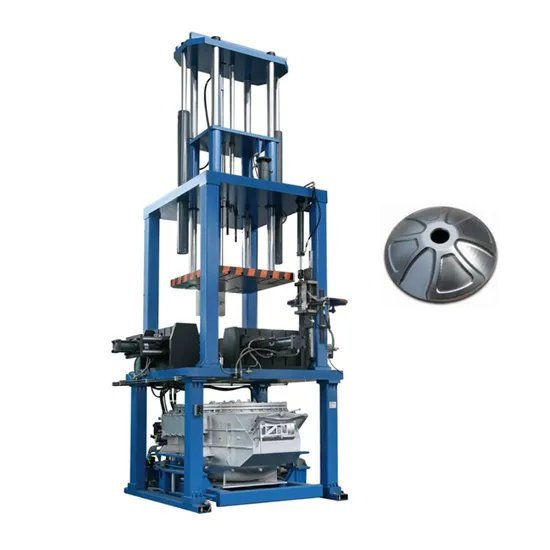

Low Pressure Aluminium Autoparts Gravity Die Cast Machine Aluminum Moulding System Metal Wheels Casting Machine Factory

Product Description

Low Pressure Aluminium Die Casting System Gravity Casting Machine Cast Machinery for moulding Tilt Squeeze Aluminum Alloy Wheels Product Description
★Non-stick aluminum structure to reduce oxidation burn
★Full digital servo hydraulic system, or variable frequency hydraulic system, saving energy by more than 50%
★90° installation mold (reverse installation)
★Ultra-high pressure accuracy
★High productivity
★Fully automatic cycle
★Full hydraulic power drive
★Reverse top stripping
★High rigidity, high strength and high reliability
★Energy saving and eco-friendly
Features of Product:
1. Siemens PLC+HMI semi-automatic operation, high efficiency and save labor
2. Supply solution and turnkey project service
3. Finish installation and adjustment before delivery to produce qualified product
4. Great aftersales, free parts and service
Technical Parameters:

Installation method of holding furnace	Fixed	Mobile
Holding furnace capacity	500kg	500kg
Table size	1400*1400mm	1500*1500mm
Moving template size	800*800mm	800*800mm
Distance between moving template and workbench	450-1450mm	450-1450mm
Moving template stroke	1000mm	1000mm
Inner dimensions of workbench column	1050*980mm	1050*1150mm
Ejection stroke	50mm	50mm
Mold cooling	10 cooling lines	10 cooling lines

Application Industry of Machine:
Equipment Technology Specification:

LPDC Machine Technology Specification
Parameter	Unit	J452L	J455L	J458L
Machine body
Fixed columns clearance	mm	1050*750	1400*1000	1750*1250
Distance between mobile and fixed platen	mm	450-900	500-1350	550-1800
Side cylinder stroke	mm	250	300	450
Opening force of the upper cylinder	KN	122	177	245
Closing force of the upper cylinder	KN	94	138	305
Opening force of side cylinder	KN	59	94	165
Closing force of side cylinder	KN	78	122	212
Ejection force	KN	122	177	305
Holding furnace
Furnace type		crucible	crucible or refractory
Capacity	KG	300	500	800
Power rate	KW	20	30	40
Temperature control accuracy	±ºC	2	2-5
Furnace pressure	Bar	Max. 1.5 bar
Hydraulic pump station system
Motor type (Regulation or Servo)		optional
Motor power rate	KW	5.5	15	18.5
Hydraulic pressure	Bar	Min. 80 bar -max. 120 bar
Pump type (gear or plunger)		Optional
Cooling type		Air	Air or water	Water
Cooling water consumption	L/Min		40	50
Operation control system
PLC, HMI unit		Siemens
Operation method		Automatic
Main power voltage (380V 60HZ,400V 50HZ)	V, HZ	Optional
Auxiliary power voltage	V, HZ	24
Control cabinet cooling type		Fan	Fan or air conditioning

Related equipment you can supply:
We can provide customers with a complete set of low-pressure casting products.The initial period,for example, the upfront budget for products not in production, including the budget for production costs, the budget for molds and equipment, and the development of production processes in the medium term, in addition to providing qualified equipment to customers. The process of producing the product is developed, and the entire production process is handed over to the customer,training and ensuring that the customer can understand and learn, then fully grasp th e production process of low pressure casting. In the later stage, in addition to providing warranty service during the warranty period, a lifetime paid maintenance service will be provided after the warranty period. In addition, we can also provide equipments and processes for heat treatment of aluminum alloy products, such as aluminum alloy aging furnace(T4), aluminum alloy vertical quenching furnace(T6),etc. and provide a variety of casting equipments including resistance melting furnace.

---
