US$60.00
|
100 Pieces
(MOQ)
|
Basic Info.
Medium Temperature
Cold Water
Counter Instructions
Digital and Analogue
Principle
Speed of Water Meter
Medium Pressure
High-pressure Water Meter
Work Environment
Dry Water Meter
Stucture
Intelligent IC Card
Transport Package
Wooden and Carton Packaging
Specification
34.5*11.4*18.6
Production Capacity
10000
Product Description

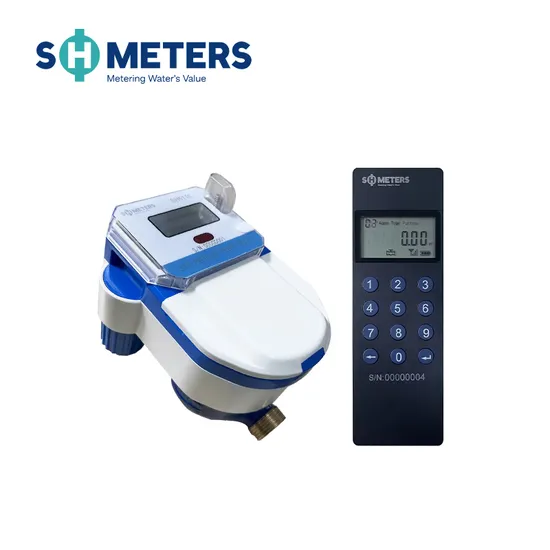

DN15~25mm R100 STS Prepaid Water Meter For Residential
STS water meter (Standard Transfer Specification water meter) is a prepaid water meter widely used in the global water industry. It utilizes encrypted Token codes for recharging and management, ensuring data security and transaction reliability. It is suitable for residential, commercial, and public utility applications.
Product Description Product Features
·Prepaid Management Function
The water meter supports a prepaid system with a "pay first, use later" model, effectively solving the challenges of traditional water bill collection. This fundamentally eliminates the risk of unpaid bills, ensuring timely revenue recovery for water utility departments.
·STS Token Recharge
To accommodate unstable or unavailable network conditions, the water meter utilizes STS Token technology, generating a unique encrypted code for recharging. After making a payment, users can immediately enter the Token code to open the valve for water supply, ensuring a convenient and reliable water usage experience.
·Flexible System Integration
The prepaid water meter features strong compatibility, allowing seamless integration with various billing management platforms. It can also be incorporated into smart water management systems, enabling data sharing and centralized management to significantly improve operational efficiency. Product Parameters
| Item | Unit | Details |
| Nominal Diameter | mm | 15 | 20 | 25 |
| Q3/Q1 | | R100 |
| Overload Flow Rate (Q4) | m3 /h | 3.125 | 5 | 7.875 |
| Permanent Flow Rate (Q3) | m3 /h | 2.5 | 4 | 6.3 |
| Transitional Flow Rate (Q2) | m3 /h | 0.04 | 0.064 | 0.1008 |
| Minimum Flow Rate (Q1) | m3 /h | 0.025 | 0.04 | 0.063 |
| Accuracy Class | Class2 |
| Temperature Class | T30/T50/T90 |
| Maximum Admissible Pressure | PN16 |
| Pressure Loss Classes | 0.63bar |
| Electromagnetic Environmental Class | E1 |
| Environmental Classifification | O |
| Protection Class | IP68 |
| Installation Direction | H |
| Flow Profifile Sensitivity Class | U5/D3 |
| Battery Lifetime | ≥6years (Depends on communication setting and switching valve frequency) |
| Working Frequency | 868MHz/470MHz |
| Modulation Method | LoRa linear frequency modulation |
| LoRa Communication Distance | ≥1000m (in open areas) ≥300m (in residential areas) |
