39% Discount! ! 20W 30W 50W 60W 100W Jewellery Logo Engarving Machine Jpt Max Fiber Laser Marking Machine for Ring/Necklace Stainless Steel Aluminum Brass Stone

Product Description

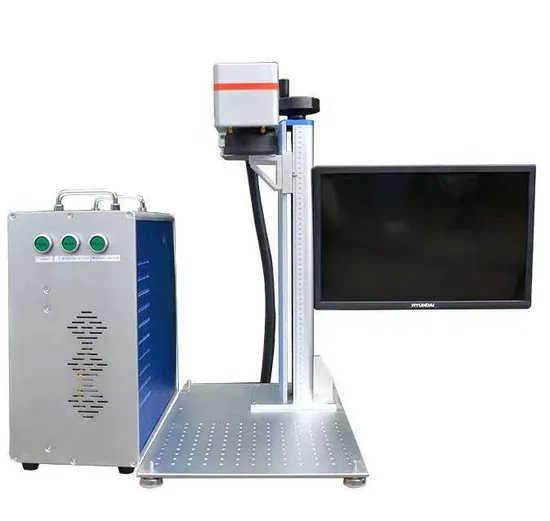

Cold light UV laser marking machine for plastics
glass marking with 2w 3w 5w
Feature

What's the feature of our Fiber Laser Marking Machine ?
Ø Effective process size : 110*110mm
Ø Raycus/MAX/JPT/Reci Fiber Laser source
Ø BJJCZ EZcard software
Ø Scale Ruler
Ø Galvo and Field Mirror
Ø Lifting shaft
Optional parts :
Ø4th Rotary Axis for Ring
Ø 150*150mm/175*175mm/300*300mm
What's the Technical data of Forsun Fiber Laser Marking Machine ?

Laser Source	JPT/Max/ Reci/ Raycus
Max Power	20w/30w/60w/100w/120w
Marking Range	110*110mm,150*150mm,175*175mm,200*200mm,300*300mm working area option
Minimum Line Width	0.01mm
Minimum Character	0.1mm
Marking Speed	10000mm/s
Marking Depth	0-1.5mm
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Graphic Format Supported	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC.
Working Environment	Clean and dust free or dust less
Matching system	Win7,Win8,Win9,Win10

Many Thanks for Below Customers' Choice
Our Advantages

What's the advantage of Forsun Fiber Laser Marking Machine ?

1.Controller	EZCAD software with stable perfomance and high reliability,Compatible with Windows XP/Vista/7/8/9/10; Supporting file types AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP; Support language English, Spanish, Arabic, Korean, Japanese
2.Laser Source	We use Chinese best brand Raycus laser generator with best cost performance.Optional:CAS/MAX/IPG/JPT color marking laser source
3.Field Lens	high system resolution and good light perception,Famous"Wavelength" brand, fast speed,high transparent rate.
4.Galvo Head	High speed galvanometer scan head ,using digital signal,high precision.
5.Reducer	Japan Shimpo Reducer -The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable
6.Rotary	Which can aslo add rotary and rotary table , suitable for ring ,pens and other ring items

Benefits

Applicable Materials:
Most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc,

Many non-metal materials,such as ABS, Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Nylon, PES, PVC, Makrolon.Printing ink, Plating, Spraying, Coating film.
Alloy and metal oxides: Anodized Aluminum

Applicable Industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
Packaging & Shipping
Our Service
What's our service for Forsun CNC Fiber Laser Marking Machine ?
What is our warranty?
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
What is our technical support to you?
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
What is our after sales services?
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by

Customer visit
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
