US$10,000.00-11,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Method
Hydraulic Automatic
Transport Package
Nude Packing
Production Capacity
1000 Sets/Months
Product Description
Advantage:
full automatic, hydraulic and output is big. the machine equip with PLC, easy to operate.the control box is very easy to operate. suitable make hollow solid block ,color pavement block,curbstone. material can be easy find all over the world . material:cement ,concrete ,sand ,flyash ,construction waste ,slag ,mountain flour.
Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
Main Parameter
Model
| QTJ4-18
| Power
| 20.5kw
|
Weight
| 5000kg
| Overall size
| 3700(L)*2100(W)*2700(H)mm
|
Forming cycle
| 20-25S
| Pallet size
| 850/880*550*20mm
|
Vibrating force
| 60KN
| Down pressure
| 4-7 ton
|
Installation Information
Area
| 2600-3300 m2
| workshop
| 80m2
|
Raw Material Work Shop
| 400m2
| Office
| 50m2
|
Staff And Workers
| 5-6 person
| Power Distribution
| 40kw
|
Water Consumption
| 5T per day
| Pallets need
| 1500pcs
|
capacity:

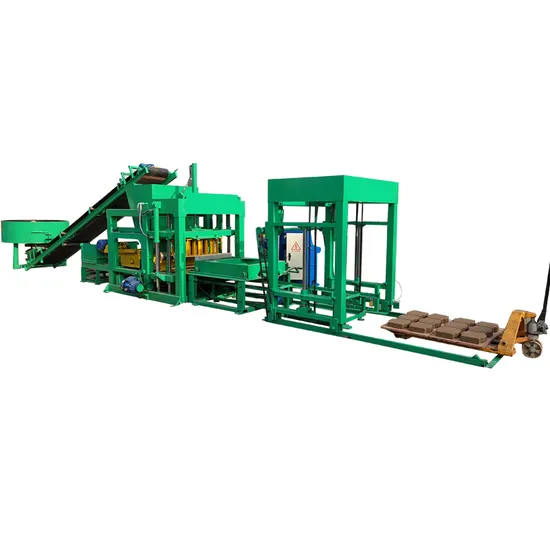

Machine display:
Block Sample:
Block Mold:
Company information:
>>
