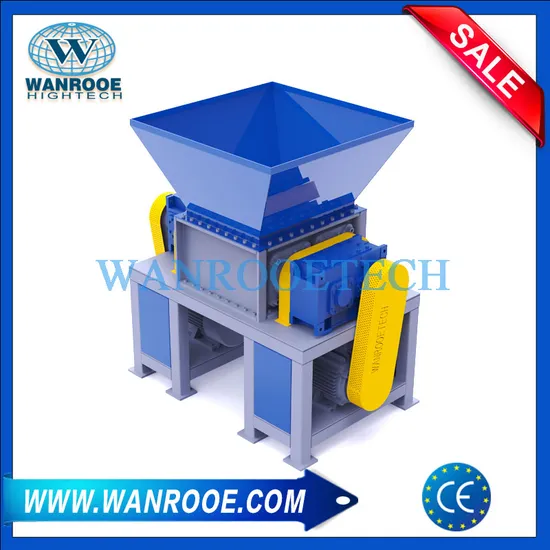

450-1500 Kg/H Waste Plastic Film and Woven Bag Double Roll Single Shaft Shredder Machine

Product Description

450-1500 Kg/H Waste Plastic Film and Woven Bag Double Roll Single Shaft Shredder Machine
Application Areas:
Double roll single shaft shredder is suited for shopping bags, garment bag, plastic bag, food bag/wrap, pallet wrap, shrink wrap, paper towel and toilet paper overwrap, air packs (from shipped packages), agricultural film, industrial film, BOPP plastic film, printed film, woven bag, tons bag, jumbo bag, raffia bag, Big Bag, Raffia Big Bag, Bulk Bag, etc.
Description:
WANROOETECH Dual-motor Single Shaft Shredder is aslo popular as two-motor single rotor shredder or dual-motor one shaft shredder. It is a multi-purpose shredding machine which can be available for shredding a wide range of material including plastic, rubber, wood, paper and animal bone etc. Designed with a high-speed rotary cutter along with a hydraulic-driven movable press-plate of cutter, this industrial shredder makes the shredding job done in a super efficient and effective way. The rotary cutter is reversible and controlled by PLC system, which well protects the shredding equipment when some stubborn material gets stuck in the shredding chamber. Operation of this single shaft shredder for sale is straight-forward, just pressing the buttons on the control panel to control every movement. And "auto mode" can be available on the control panel for automatic operation to increase working efficiency and meanwhile save labor.
Double-roller shredder of WANROOETECH are designed and manufactured for recycling wide range of waste materials, for example, plastic, rubber, paper, wood, etc. Espeicalaly, it has the higher working efficiency for films and woven bags than the double-shaft shredder. But It is different from the double-shaft shredder because it has the same rotor and blades as single-shaft shredder.
By different requirements such as the input and output size of the material, capacity, etc, WANROOETECH can work out the best suitable proposal to meet our customer's request.
Working principle:
Double-roller shredder use dual-motor to drive dual-gearbox, turn high rotate speed of the electric motors into low rotate speed of cutter rollers by gearboxes, then cutting, squeezing, and tearing big materials, shred them into small broken pieces.
The rotate speed of the cutter roller is nearly 10-25RPM. Low rotate speed with high torque force. And the materials of cutters are high quality alloy steel with good abrasion resistance.
Features:
Big-volume hopper.
For efficient feeding and applicable to be connected with in-feed conveyor.
Replaceable screen at the outlet.
For controlling shreds under required size. Size of screen hole is customizable.
Hydraulic-driven press plate.
To tightly hold the objects close to the rotary cutters for efficient shredding.
Owns both rotating cutters and stationery cutters.
For effective shredding. Easy maintenance.
PLC control.
Making it easier for fault diagnosis and maintenance.
Cooling system.
For effectively cooling down oil temperature in high ambient temperature so as to protect machine.
Dual motor design.
For increasing the output.
Technical Parameters:

Model	Rotating & Fixed Blades QTY	Capacity(kg/h)	Shredding Diameter(mm)	Main Motor Power(kw)
PNDS-600D	60+4	450	300	22x2
PNDS-800D	78+4	700	400	30x2
PNDS-1000D	96+4	1000	400	45x2
PNDS-1200D	102+4	1200	400	55x2
PNDS-1500D	132+6	1500	400	75x2

Our Service:
1. One year guarantee for whole machine
2.24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well
