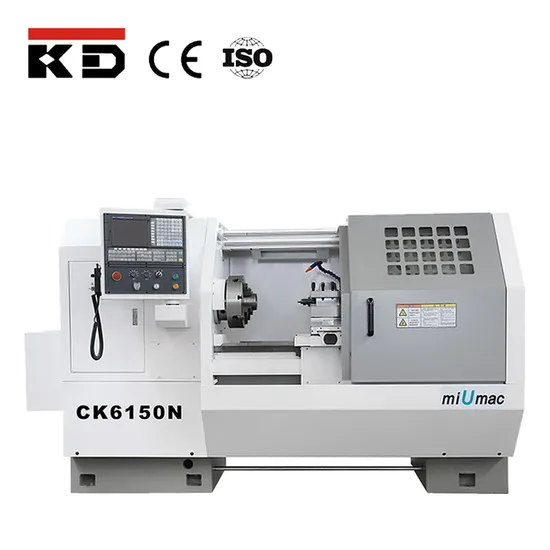

High Precision Flat Bed CNC Lathe (CK6150N/1500)

US$15,000.00-30,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CK6150N/1500
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03mm
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
500mm
Spindle Bore
80mm
Tool Post
4 Way (Stadard),6 Way and 8 Way( Optional)
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100 Sets/ Year

Product Description

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS


ITEMS		 CK6140N CK6150N

Max. swing over bed		 Ø440mm Ø500mm

Max. swing over carriage		 Ø210mm Ø295mm

Width of bed 		405mm

Maximum turned length 		1000mm 1000/1500mm

Max. turning length 		850mm 850/1350mm

Spindle nose		 A2-6 D8

Spindle bore		 Ø56mm Ø80mm

Cone hole diameter and taper of spindle hole		 MT.No6 MT.No7

Steps of spindle speed(Manual)		 Variable 2(variable within each step)

Range of spindle speed		 450~2800 r/min 100~500,400~2000r/min

Rapid feed for Axis Z		 10m/min

Rapid feed for Axis X		 8 m/min

Max. travel of Axis Z		 880mm 900/1400mm

Max. travel of Axis X		 290mm 310mm

Min. input		 0.001 mm

Tool post stations		 4-ways

Tool cross section		 25×25 mm 32×32 mm

External diameter		 Ø75mm

Taper of bore		 MT.No.5

Max. Traverse		 150mm

X/Z motor torque		 4.7/7Nm 7/9.5Nm

Power of main motor		 5.5 KW 7.5 KW

Power of cooling pump 		90W

Overall dimensions(L×W×H)		 2630×1400×1550mm 2530×1400×1600mm

Net weight		 2700 kg 2850 kg
