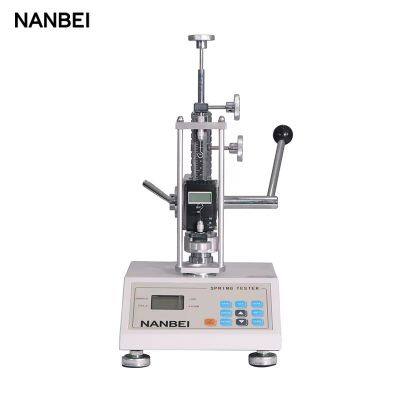

Digital display spring tester for push and pull force testing
Application & Description
ATH series of digital spring tension and compression testing machine is to test the tensile, compression spring
deformation and load characteristics of the special equipment.
For tensile and compression springs under a certain length of work load test, can also be used for spring,
rubber and other elastic device elastic load test. The instrument has a print with no print.
Feature
1.high-precision high-resolution: precision 1, the minimum reading of 0.001N;
2.three kinds of display options: real-time, peak, automatic peak;
3. three units of conversion: N, kg, lb
4.the peak to maintain the function: to capture the test peak;
5.the comparison function: the upper and lower limits of free deviation set, the alarm lights were to traffic lights
and peak automatic alarm;
6.the automatic peak function: peak hold time (1 to 99 seconds) free to set;
7. automatic shutdown function: 0 ~ 99 minutes no operation automatically shut down (0 seconds that does not
automatically shut down);
8. gravity acceleration function: according to different regions, can be freely set (9.000 ~ 9.999);
9.the calculation function: connected to the computer, you can automatically calculate the maximum value of
each test, the minimum, the average;
10.built-in printer: can print 99 sets of stored measurement data and the maximum, minimum, average and so on.
Technical parameters
Model Number
| NTH-10
| NTH-20
| NTH-30
| NTH-50
|
Maximum testing load
| 10N
| 20N
| 30N
| 50N
|
Minimum resolution
| 0.001N
|
Diameter of the platen
| 34mm
|
Maximum free length of measurable spring
| 80mm
|
Length of travel of the displacement scale
| 60mm
|
Division value of the Displacement scale
| 0.01mm
|
Indication error
| ±1%
|
Power Supply
| AC 110-220V, 50HZ-60HZ
|
Power Capability(without printer)
| 13W
|
Power capability (with printer)
| 20W
|
Working temperature
| 20±10℃
|
Temperature of storage and transportation
| -27℃~+70℃
|
Relative temperature
| 15%~80%RH
|
Model Number
| ATH- 100
| ATH- 200
| ATH- 300
| ATH- 500
|
Maximum testing load
| 100N
| 200N
| 300N
| 500N
|
Minimum resolution
| 0.01N
|
Diameter of the platen
| 48mm
|
Maximum free length of measurable spring
| 150mm
|
Length of travel of the displacement scale
| 90mm
|
Division value of the displacement scale
| 0.01mm
|
Indication error
| ±1%
|
Power Supply
| AC 110-220V, 50HZ-60HZ
|
Power capability (without printer)
| 13W
|
Power capability (with printer)
| 20W
|
Working temperature
| 20±10℃
|
Temperature of storage and transportation
| -27℃~+70℃
|
Relative temperature
| 15%~80%RH
|
Model Number
| NTH-1000
| NTH-2000
| NTH-3000
| NTH-5000
|
Maximum testing load
| 1000N
| 2000N
| 3000N
| 5000N
|
Minimum resolution
| 0.1N
|
Diameter of the platen
| 108mm
|
Maximum free length of measurable spring
| 200mm
|
Length of travel of the displacement scale
| 150mm
|
Division value of the displacement scale
| 0.01mm
|
Indication error
| ±1%
|
Power Supply
| AC 110-220V, 50HZ-60HZ
|
Power capability (without printer)
| 13W
|
Power capability (with printer)
| 20W
|
Working temperature
| 20±10℃
|
Temperature of storage and transportation
| -27℃~+70℃
|
Relative temperature
| 15%~80%RH
|
>>
