Product Details
Product Description
Product Description

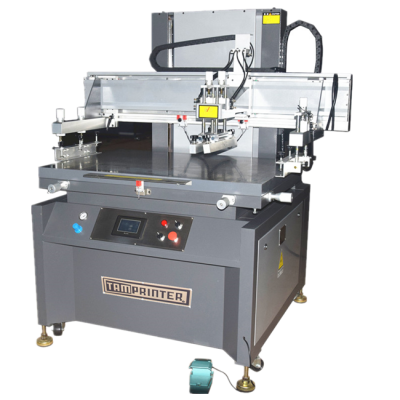

TM-3050A and TM-3050B is PLC（Programmable Logic Controller）+servo motor precision Vertical screen printer
TM-3050D Button panel screen printing machine with a single-chip control
video link: /v_show/id_XMTI2ODc5NTkwMA==.html
Widly used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing
Technical parameter:
Model No.
| TM-3050A
| TM-3050B
| TM-3050D
| TM-5070A
| TM-5070B
| TM-5070D
| TM-6090B
| TM-6090D
| TM-70100B
| TM-70100D
|
Servo+PLC
| X/Z servo
| X servo
Z motor
| X/Z Common motor
| X/Z servo
| X servo
Z motor
| X/Z Common motor
| X servo
Z motor
| X/Z Common motor
| X servo
Z motor
| X/Z Common motor
|
Price
| $7500
| $6625
|
| $10000
| $9125
|
| $9375
|
| $9975
|
|
Print area
| 300X500mm
| 500X700mm
| 600X900mm
| 700X1000mm
|
Table size
| 400X600mm
| 600X800mm
| 700X1000mm
| 800X1100mm
|
Max frame
| 550X750mm
| 600X1000mm
| 800X1200mm
| 900X1350mm
|
Printing thickness
| 0~40mm
| 0~ 50mm
| 0~ 50mm
| 0~ 50mm
|
Overlay accuracy
| 0.01mm
| 0.015mm
| 0.02mm
| 0.02mm
|
Platform precision
| About +/-0.04mm
| About +/-0.06mm
| About +/-0.075mm
| About +/-0.075mm
|
Printing pressure
| 4.0-8.0 kgf/cm2
| 4.0-8.0 kgf/cm2
| 4.0-8.0 kgf/cm2
| 4.0-8.0 kgf/cm2
|
Air pressure
(mpa)
| 0.5~0.6(Mpa)
| 0.5~0.6(Mpa)
| 0.5~0.6(Mpa)
| 0.5~0.6(Mpa)
|
Air consumption
| 35L/min
| 35L/min
| 35L/min
| 35L/min
|
Printing speed
| 960pcs/h
| 1000pcs/h
| 900pcs/h
| 900pcs/h
|
Power
| 220V/2.5KW
| 220V/2.5KW
| 380v /2.5kw
| 380v /2.5kw
|
Dimensions (LXWXH)mm
| 980X820X1580mm
| 1260mmX900mmX1680mm
| 1500X1070X1750mm
| 1550X1200X1750mm
|
Weight
| 280kg
| 420kg
| 480kg
| 550kg
|
if add robot arm add $3000
Application:
Mobile phone cover, LED backlight, Tablet PC cover.
Features:
1. The screen printing powered by imported servo motor, printing more stable.
2. A variety of accessories by the customer freedom of choice, choose more flexible.
3. Hard alumina Taiwan version and more effective to prevent the glass scratches.
4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.
Additional Info.
Payment terms: T/T, L/C ,Western Union
Packing: Plywood
Lead time: 5 days after confirmed payment
Sku: 10 sets
Standard certification: CE
Minimum Order: 1 set
Price term: CIF/FOB/CFR/FCA/EXW
hot keys: Glass screen printing machine
Payment Terms︰ TT/LC/ Western Union
>>
