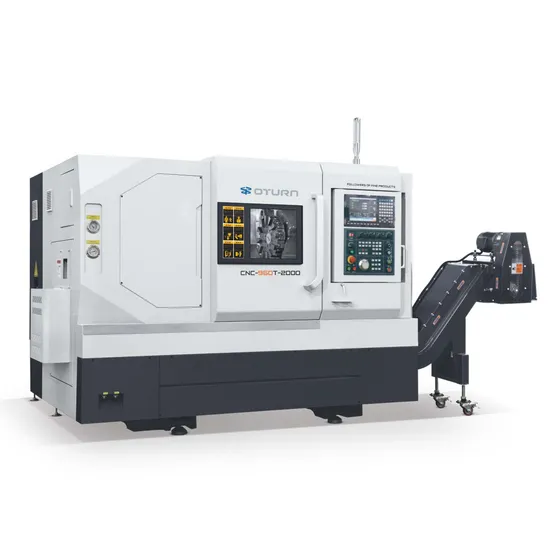

960t-2000 5 Axis Dual Spindle Interpolate Y-Axis CNC Lathe CNC Process Center

Product Description

Product Description
The machine with high-efficiency reinforced ribs is not only cast in one piece, but also made of high-tensile Meehanite cast iron, coupled with a hot-flow horizontal design, which can meet the processing needs all year round, and the casting can provide greater shock resistance. And the vibration absorption and low deformation make the machine not only durable but also have outstanding performance!
Finite element analysis (FEM) is used to optimize the design of the integrated molding machine and the stiffeners. The mechanical strength is increased by 30% compared with the traditional design. Therefore, this series of products can be used for heavy cutting and can maintain long-term ultra-high precision. The high rigidity can also extend the service life of the tool!
High rigidity, heavy cutting, high stability
It adopts an integral cast inclined bed and 40° inclined guide rails, making it easy for the operator to get on and off the workpiece, and the cutting arrangement is smooth. It is designed with thick reinforcement ribs to minimize distortion and thermal deformation. The wide bed and precision rolling linear guides enable the machine tool to achieve heavy cutting characteristics and long-term accuracy maintenance.
The fully protected sheet metal isolates the turning iron and coolant inside the machine tool, providing you with a safe and clean working environment.
The spindle box adopts a structural design to reduce thermal deformation to obtain high-precision and stable cutting.
The lubrication system adopts a quantitative pressurized thin oil lubrication system to perform regular and quantitative lubrication on each screw, guide rail and other lubrication points, which improves the stability of the machine tool.
The guide rail adopts precision roller linear guide rail with a track width of 35MM; the saddle guide rail has a large span and can support heavy cutting for a long time.
The feed unit uses a 32mm diameter ball screw, and preloading is applied at both ends to eliminate precision loss caused by thermal elongation.
High precision and high dynamic response
Using two pairs of high-precision NSK P4 bearings, the spindle achieves high rigidity and extremely high spindle rotation accuracy. The spindle achieves stepless speed regulation through an AC servo motor.
The spindle is driven by a dedicated V-belt spindle system, which makes maintenance easier and reduces the impact of the heat generated by the motor on the spindle accuracy. The precision-adjusted pulley reduction ratio allows the maximum speed of the motor and the maximum speed of the spindle to be reached at the same time, thereby reducing The impact of full horsepower output on the lowest speed torque is the motor's full potential to achieve maximum cutting capabilities!
Thermal stability
The main spindle box and the sliding saddle are on the same angular plane, which reduces distortion caused by thermal deformation of the main spindle box.
Using high-speed rolling bearings and quantitative grease sealing lubrication to ensure the thermal stability of the body and spindle temperatures. Product Parameters

Item		Specification
Bed	The bed and base are made of high-quality cast iron, and the bed is slanted at 40°.
Processing range	Maximum rotation diameter of bed	880mm
	Maximum processing diameter of discs	600mm
	Maximum processing diameter of the carriage	600mm
	Maximum processing length of bar	2000mm
	Maximum bar hole diameter	Φ91mm
Travel Feed	X-axis maximum travel	350mm
	Z-axis maximum travel	2050mm
	X/Z axis rapid movement rate	18m/min
	X/Z screw diameter/pitch	X:50/08mm,Z:63/12mm
	X/Z linear guide width	55mm
	X-axis servo motor	β22(with brake)
	Z-axis servo motor	β22
	Turret servo motor	3N.m
Precision	X/Z axis positioning accuracy	±0.003/300mm
	X/Z axis repeat accuracy	±0.003/300mm
Moving tailstock	Tailstock sleeve specifications	Mohs #5 internal rotation
	Tailstock sleeve travel	Φ150/200mm
	Tailstock pressure range	5~30Kg/cm2
	Tailstock moving method	Programmable hydraulic movement
Spindle	Spindle nose type	A2-11
	Spindle through hole diameter	Φ105mm
	Spindle maximum speed	2200 rpm
	Spindle motor power	22KW
	Chuck/rotary cylinder	12 inches/12 inches
Turret	Turret specifications	125 center height/12 workstations
	Cutterhead size	440
	Tool holder specifications	32×32
	Boring tool holder	Φ50mm
Other	Total capacitance	35KW
	Machine tool net weight	About 10200Kg
	Machine size (length*width*height)	7000×2300×2550mm

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
