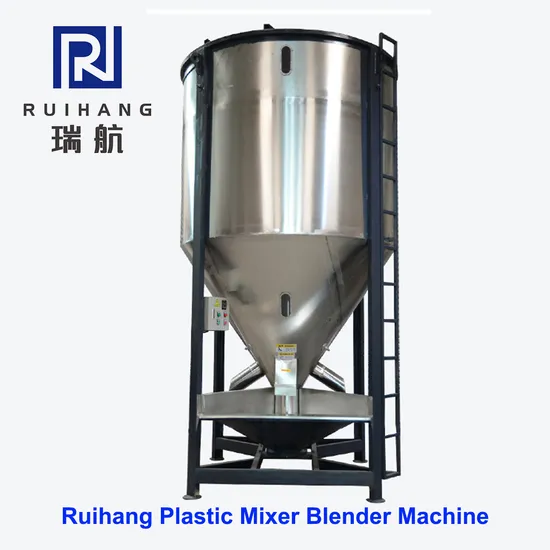

Ruihang Industrial Plastic Mixer Blender Machine Raw Material Mixer

Product Description

Product Introduction:
The mixer series is developed on the basis of the introduction of advanced technology, which is mainly used for the batching, mixing, coloring and drying of various resins and PE, PP, PVC and other materials, as well as the drying and devolatilization of engineering plastics such as ABS polycarbonate before processing. The unit combines the hot mixing process with the cold mixing process, and the material that completes the hot mixing automatically enters the cold mixing to cool it, remove the residual gas, and prevent caking.
Product features:
The mixer has small extrusion pressure on the material, low heat, high mixing efficiency, and more uniform mixing.
Application:
Through its accurate metering and efficient mixing capacity, the mixer plays an indispensable role in many industries such as chemical, pharmaceutical, food, plastics, rubber and so on, improving the quality and performance of products.
Main technical parameters

Model/Item	Driving motor power/kw	Heating power/kw	Output/kg	Overall dimensions/mm
VM-500	4	15	500	1200x2650
VM-1000	4	20	1000	1500x2800
VM-2000	5.5	20	2000	1800x3250
VM-3000	7.5	30	3000	2000x3750
VM-5000	7.5	40	5000	2400x4200
VM-6000	11	50	6000	2500x4500
VM-8000	11	60	8000	2750x5100
VM-10000	11	70	10000	3000x5350

Screw▪ The main screw rod is made of stainless steel 304, the paddle is made of stainless steel 201, the thickness is 4.0mm;
▪ Helical circular mixture, fast and evenly stirring.Feeder Hopper
Narrow through-port design, stainless steel mesh, easy feeding, as well as facilitating the rapid filling of the molten plastic and the separation of the plastic from the product at the gate after molding.Motor
four-wheeled vertical design, low noise, durable, short time to complete the uniform mixing, low energy consumption, high efficiency.Paddles
High performance, low maintenance, and the ability to adapt to different material characteristics

---
