Heavy Duty Universal Turret Milling Machine

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6336WA

Structure

Ram

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Type of Machine

Turret Milling Drilling Machine

Spindle Taper

ISO40 ISO50

Main Motor

5HP

Table Size

1500X360mm

Worktable Travel

900X390X500mm

Spindle Speeds

75-4660 Rpm

Table Swivel

45 Degree

Max.Loading Weight

400kgs

T-Slot

3-18-80 mm

Transport Package

2180X1950X2380 mm

Specification

2350kgs

Trademark

tokmc

Origin

Tengzhou China

HS Code

84595900

Production Capacity

100 Sets/Month

Product Description

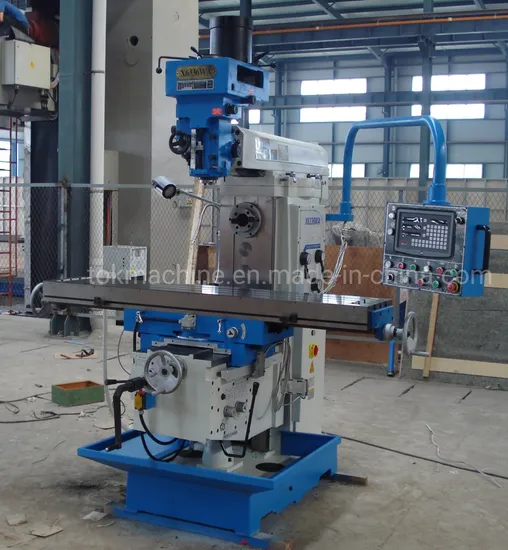

X6336WA Heavy Duty universal turret Milling Machine
•Taiwan High speed milling head,5HP
•45 degree table swivel
•Three axes auto feed
•Large torque ans strong power
•Fast moving 2000 mm/min
•Rectangular guideway

Specification	X6336WA
Spindle taper	ISO40(V) ISO50(H)
Distance from spindle to table	30-510mm
Spindle speeds	75-4660r.p.m(V) 40-1300r.p.m(H)
Table size	1500x360 mm
Max.rotations angle of table	±45
Table travel(horizontal/cross/vertical)	900x390x500mm
Feeding range of longitudinal cross travel	860x350x450mm
Feeding range of longitudinal travel	30-600 mm/min 8 steps
Feeding range of cross travel	22-410mm/min 8 steps
Feeding range of vertical travel	15-220 mm/min 8 steps
X Y Z axis rapid feed speed	1300 /1200/ 600 mm/min
Feed motor	1.1 kw
Max. Weight of workpiece	400 kgs
T-slot number width distance	3-18-70 mm
Main motor	5HP (V) 4KW(H)
Overall dimension	2180X1950X2380 mm
N.W./G.W.	2350/2600KG
