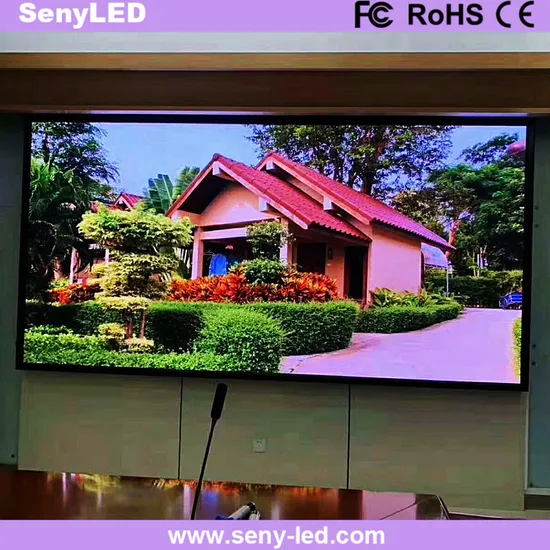

P1.25/P1.538/P1.86/P2/P2.5/P3.076 High Quality Shenzhen Factory Indoor Giant Advertising Wall HD Video Panel LED Display Screen

Product Description

P1.25/P1.538/P1.86/P2/P2.5/P3.076 High Quality Shenzhen Factory Indoor Giant Advertising Wall HD Video Panel LED Display Screen
Features:
*Quick assembly model, 2 persons are able to assemble 20sqm within one hour
*Light weight, for indoor application, only 20kg/sqm
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness is adjustable depends on environment
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA( with processor )
Technical Parameter:

Item Name	Technical Parameter
LED Parameter
Item Name	LED Type
Red LED	SMD3in1
Green LED	SMD3in1
Blue LED	SMD3in1
Module Parameter
Pixel Pitch	2.5mm
Pixel Configuration	1R1G1B
Module Resolution	128 x 64 pixels
Module Pixles	8192 pixels
Module Size	320mm x 160mm
Whole Screen Parameter
Screen Brightness	800cd/m2
Driving Method	1/32 scan, constant current driving
Min. Viewing Distance	2.5m
Max. Power Consumption	≤ 500W/m2
Ave. Power Consumption	≤ 300W/m2
Gray Level	14 bits
Frame Frequency	≥60Hz
Refresh Frequency	3840Hz
LED Life-span	≥100,000 hours
MTBF	≥5,000 hours
Discrete Blind Spot Rate	<1/10000
Continuous Blind Spot Rate	None
Blind Spot Rate	<1/10000
Protective Scale	IP20, for indoor use only
Screen Plainness	<±1mm
Power Supply Mode	220V
Working Temperature	Temperature: 0 Celsius~+40 Celsius
Storage Temperature	Temperature:-30 Celsius~+50 Celsius
Humidity	Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	Synchronous controlling system
Display Content	Video, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <20km,internet cable <100m
With Video Processor ( optional )	Video, VGA, HDMI, DVI, SDI/HD-SDI/3G-SDI

Applications:
Production Process:
Certification:
Packaging and Shipping:
Our Services:
1) Your inquiry related to our products or price will be replied in 24hrs.
2) OEM & ODM,any your customized lightings we can help you to design and put into product.
3) Distributoership are offered for your unique design and some our current models.
4) Protection of your sales area,ideas of design and all your private information.
5) Top Quality + Reasonable Price + Responsible After Service = Successful & Win.

---
