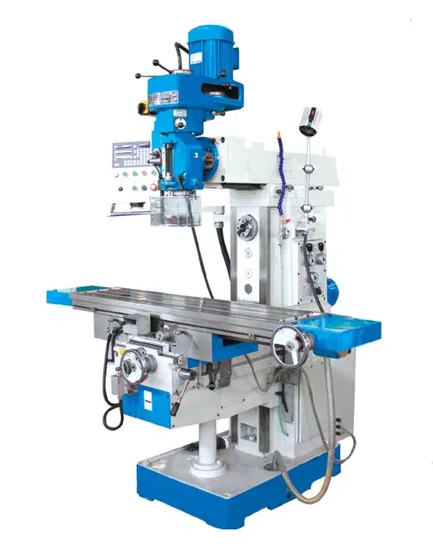

Universal Vertical Turret Milling Machine Xq6332A/Xq6332c

Product Description

Turret Milling Machine XQ6332A/XQ6332C
Horizontal spindle widens the range of applications significantly.
pneumatic tool clamping is optional.
High speed variable milling head on available.
300mm worktable can be ordered at special request.
Headstock swivels ±45°.
Table 3 axes are controlled by one servomotor,torque large,energy efficiency ,safe and reliable.
Rotary table(±45° )is optional accessories.
Specification:

Model No.	XQ6332A	XQ6332C
Item No.
Specifications
Table size	1370X320 mm	1370X320 mm
Table travel(XY/Z)	820/300/400 mm	1000/380/400 mm
Table feed (XY/Z)	30-750/20-500/15-375 mm/min	30-750/20-500/15-375 mm/min
Rapid speed of table (XY/Z)	1335/1335/1000 mm/min	1335/1335/1000 mm/min
T-slots(NO.width/pitch)	3/14/80 mm	3/14/80 mm
Spindle
Spindle taper	3HP:R8 or ISO30;5HP:ISO40(V) ISO40(H)
Table feed(X/Y/Z)	XY:30-830 Z:23-625 mm/min
Arm travel	450 mm	450 mm
Distance between spindle nose and table surface	75-475mm	75-475mm
Distance between spindle axis and ram surface	200 mm	200 mm
Spindle speed range	43-3225 r/min 16 steps 65-4660(V) 12 steps 35-1500(H)
Other
Main motor power	3HP or 5HP
Torque of X/Y/Z axis AC servo motor	15 N.m
Overall size	1820x1680x2350 mm	1820x1680x2350 mm
Weight	1750 kg	1800 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
