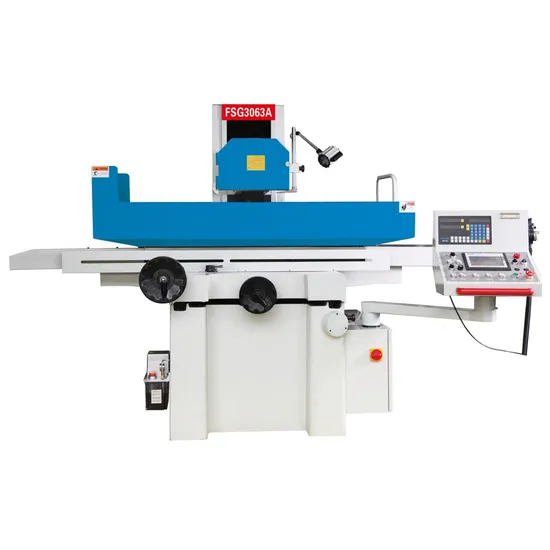

Fsg-3063 Series Auto Surface Grinder

Product Description

Product Description
Feature instroduction of saddle moving surface grinder
FSG Series saddle moving grinder, the table size covers 200x500,250x500,300x630,300x1000,400x800,400x1000.
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes corss movement driven by AC motor, work table make reversing movement driven by hydrau, and spindle make elevating movement and is driven by manual(M series), AC motor(R series), or AC servo motor(A series).
Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency
Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guide way, which make the column safe and beautiful.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
the A series grinder is standard equipped with auto down feed Servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.
The work table is driven by imported hydraulic valve unit, realize smoothly motion without shocking
Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy
Table size:305*635mm, three models to select: M, R, A.
Product Parameters
Specifications

ITEM/MODEL			FSG-3063M	FSG-3063R	FSG-3063A
	Table size	mm	305*635	305*635	305*635
	Magnetic chuck size	mm	300*600	300*600	300*600
	Max.distance from spindle center to table	mm	580	580	580
	Table cross travel	mm	340	340	340
	Table longitudinal travel	mm	765	765	765
	Max. loading capacity(include chuck)	kg	270	270	270
	Speed of table longitudinal move	m/min	5~25	5~25	5-25
	Cross Motion
	Intermittent feed rate	mm/t	0.1~8	0.1~8	0.1~8
	Rapid speed	mm/mi	990	990	990
	Feed of handwheel	mm/div	0.02	0.02	0.02
	Vertical Motion
	Auto down feed rate	mm/t	-	-	0.005-0.05
	Rapid down speed	mm/min	-	650	480
	Feed of handwheel	mm/div	0.005	0.005	0.005
	Spindle rotating speed	r/min	1450 (50HZ)/1750 (60HZ)
	Grind wheel size	mm		350*40*127
	Spindle motor power	kw		4
	Floor space (L*W*H)	mm		2900*2200*1900
	Gross weight	kg		2800
	Package size (L*W*H)	mm		2350*2220*2210

the photo shows includeing optional equipment.
Detailed Photos

---
