5 Ton Loading Capacity Mining Dumping Tricycles for Metal Mine

Product Details

Product Description

Product Description
Product Description

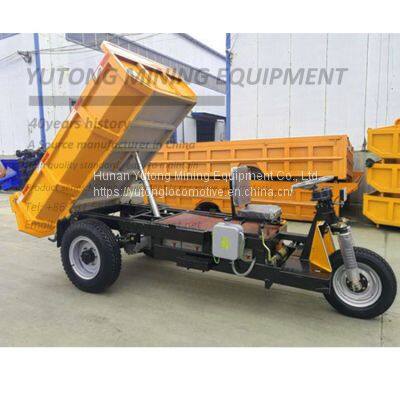

Mining electric tricycle can transport ore, clean up slag, transport tools, personnel, etc. in the mine tunnel. Electric dump trucks have no heat, no smoke, no noise, and no pollution, which brings good news to the miners who are suffering from the smoke and fire of diesel locomotives and maintain the air quality in the roadway. Three-layer craftsmanship of the whole vehicle, original headlights, and mirrors. Multi-layer tires, heavy beams, thicker carriages, and suspended rear axles. Easy to drive, flexible direction, heavier chassis, no skidding. (Customized carriages according to the size of the roadway) is a battery transportation tool used by factories or mines to transport raw materials, semi-finished products, finished products, ore, slag and other materials.
Specification Table

Model	YT-1.5	YT-20	YT-30	YT-50
Carriage volume	0.75m³	1.1m³	1.4m³	1.9m³
Loading Capacity	1500kg	2000kg	3000kg	5000kg
Unloading hight	2150mm	2250mm	2350mm	2350mm
Loading Hight	1230mm	1250mm	1250mm	1250mm
Min ground clearance	≤240mm	≤240mm	≤250mm	≤250mm
Min turning radius	≤4600mm	≤4800mm	≤4900mm	≤4900mm
Gradeability (heavy load)	≤6°	≤6°	≤6°	≤6°
Maximum lift angle of carriage	45°	45°	45°	45°
Tyre model	Front tire 450-14 Rear tire 650-16	Front tire 500-1 Rear tire 650-16	Front tire 500-14 Rear tire 700-16	Front tire 600-10 Rear tire 700-16
Damping system	Front: Damping shock absorber	After: 13 thick leaf springs	Main frame 9 pieces*10mm sub frame 6 pieces*10mm	Main frame: 9 pieces*10mm, sub frame: 6 pieces*10mm
Operation System	steering wheel	steering wheel	steering wheel	steering wheel
Light System	FRONT AND BACK LED LIGHT	FRONT AND BACK LED LIGHT	FRONT AND BACK LED LIGHT	FRONT AND BACK LED LIGHT
Max Speed	25km/h	25km/h	25km/h	25km/h
Motor Power	3kw	5kw	3kw	7.5kw
Cargo box size (outer diameter)	1850*1200*400mm	2000*1380*450	2000*1350*500	2200*1400*600mm
Container board thickness	3mm	3mm	3mm	3mm
Voltage	72V	72V	72V120AH	72V120AH
Quantites of Battery	6 piece, 12V100AH Maintenance free	9 piece,8V150AH Maintenance free	6 piece,12V100AH Maintenance free	6 piece,12V120AH Maintenance free
Dimensions	3350*1300*1250	3500*1380*1250	3800*1350*1450	3800*1400*1550
Frame	welding	welding	welding	welding
Weight	900kg	1160kg	1200kg	1500kg
Control system	Inbol Controller	Inbol Controller	Inbol Controller	Inbol Controller
Wheelbase	1300 mm	1350 mm	1400 mm	1400 mm
