Subsea EVA Foam Buoyancy Buoys, Floating Buoys EVA Cylindrical Offshore Foam Filled Marine Buoys

Product Description

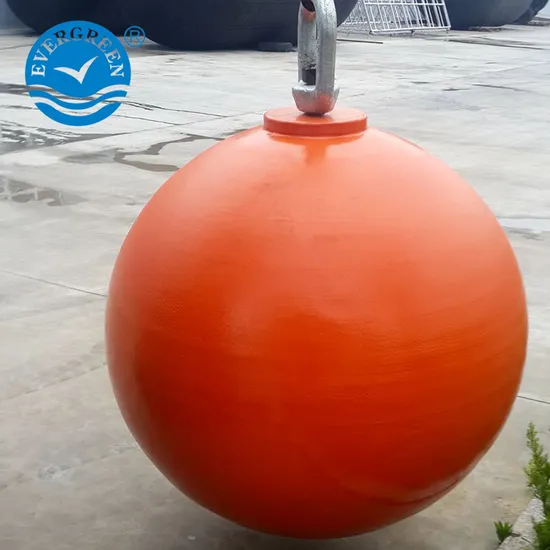

Mooring buoy, Foam Buoy
Construction Features:
l Core
The core is manufactured by batching up the resilient closed cell polyethylene or EVA foam and uniformly and continuously thermolaminating each layer together. The method ensures a bond stronger than the foam itself and eliminates the use of adhesives which can break down under long use. Useing of a polyethylene foam core ensure the buoy will not absorb water even if the skin is punctured, increasing the lifespan of the product and reducing maintenance costs. The resilient material makes the buys self fendering with a high impact absorption capacity.

l Skin
The core is encapsulated with a skin of high performance polyurethane elastomer, spray applied. Polyurethane elastomer is selected for the skin because of its high resistance to abrasion, fatigue and ultra violet degradation and is significantly more durable than polyethylene materials used in the construction of rotationally moulded buoys.

l Steelwok and end assembly
Comprising through central steel tube with longitudinal gussets and external load distribution flanges at each end. A swivel assembly, certified 10 tonnes SWL, with bows at each end passes through the central tube.
All the material of swivel assembly are hot dip galvanized. Steelwork to be coal tar epoxy painted.

Subsea Buoyancy Evergreen can make buoyancy material used for subsea up to 7000m. Product of different opplications buoyancys are manufactured upon our advance subsea buoyancy material. We can make subsurface mooring buoys , cable float, pipeline buoys, ROV buoyancy module , special buoys, and other synmatic foam products.
Our high-performance subsea buoyancy material and synmatic foam have the following performance.

Item	Unit	Value
		500m	1000m	1500m	4500m
Density	g/cm³	≤0.4	≤0.45	≤0.5	≤0.6
Compressive Strength	MPa	≥5	≥10	≥15	≥40
Hydrostatic Pressure	MPa	≥5	≥10	≥15	≥37
Water Absorption	%	≤2(5MPa,24h)	≤2(10MPa,24h)	≤2(15MPa,24h)	≤2(40MPa,24h)

FAQ:
Q1:What's the material of your products?
A:Evergreen Maritime general surface support buoys are manufactured with high quality closed-cell PE/EVA resilient foam, encapsulated with self-coloured tough polyurethane elastomer skin.
Q2:Can you do OEM?
A:Yes,we can do.As long as receive your request,we could produce accordingly.
Q3: Are you factory or trading company?
A:we are a company and factory,located in jimo city,Qingdao,near to Qingdao port and Qingdao airport, which is convenient for transportation.
Q4:What's your delivery time and payment terms?
A:Delivery time is according to customers' size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Q5:How can I get samples from you?
A:We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.
Q6:What's certificates can your company provide?
A:We can provide CCS,ABS,DNV,LR,BV certificates.
Q7:What about your warranty time?
A:Our warranty period is 12 months.During this time,any problems about products from our
factory,we solemn promise to change and repair them for free;if problems from customers' improper operati-ng,we could provide free guidance and repair materials.
For more details,please contact me directly.
Ada Zheng/Marketing manager

---
