Vico 2D Measuring Machine for Auto Body Repair

Product Description

Product Description
Feature

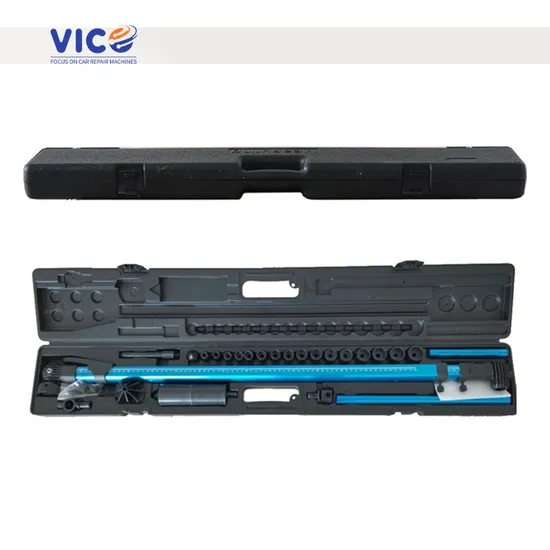

VICO High Precision 2D Measuring System is an economical, practical point to point measurement tool, which is widely used in construction, machinery maintenance and some other fields. It is aluminum retractable measure equipment, it has a very high measurement precision, and easy to operate, it can also be 3D measuring with the adapter connectors, the measurement process is not subject to site, equipment restrictions. With the database of the cars, it will be a perfect tool during the sheet mental maintenance, and make the vehicle evaluation traceable.
Fix the magnetic probe,loose the fasten bolt and move the central tube inside the measure main scale,the numerical value on the right side of main scale big tube is the distance from magnetic probe to the scale bottom probe.(Note:The small tube should be on the right end and be close to the middle tube,as shown above.The magnetic rotation head should be perpendicular to the main scale.)
Fix the magnetic probe,loose the fasten bolt and move the central tube inside the measure main scale,the location pin will be released when the central tube is to the end.Then draw out the small tube measure meter.The numerical value on the right side of main scale central tube is the distance from the magnetic probe to the end of scale end probe.(Note:The small tube can work only after the middle location pin is released,otherwise the numerical value on the right side of small tube is not the real distance.As shown above.)
Packaging & Shipping

---
