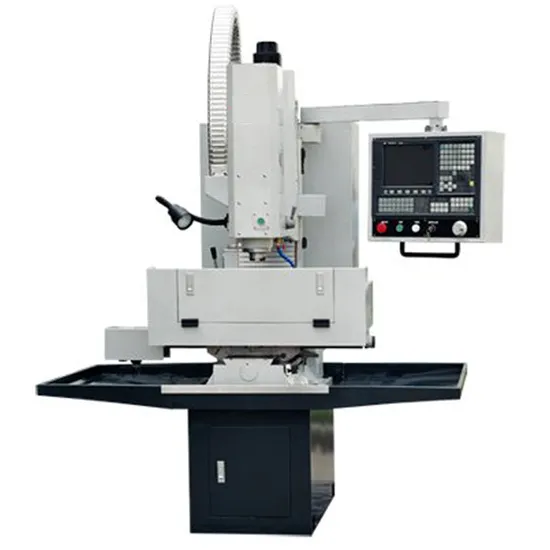

Xk7124 China 3-Axis Small Vertical CNC Milling Machine

Product Description

XK7124 China 3-Axis small Vertical CNC Milling Machine
Main Features:
1.Manual and pneumatic Tool Change available
2.Stand and body separately designed
3.Semi-protection.
4.Steel welded stand and cast iron stand available
5.Big size oil collecting assuring ground cleaning.
6.Suitable for Box parts , shell parts, disc-shaped parts machining.
XK7124 China 3-Axis small Vertical CNC Milling Machine

Specificatinos:

Model		XK7124	XK7124B
WORKTABLE	Size of worktable(L×W)(mm)	800×240	800×240
		900×240 Optional	900×240 Optional
	T slot(width ×qty×spaces)(mm)	16×3×60	16×3×60
	Max loading weight on worktable(kg)	60	60
TRAVEL	X/Y/Z-Axis travel(mm)	430x280x400	430x280x400
		530x280x400	530x280x400
	Distance between spindle nose and table(mm)	60-460	50-450
			50-550
	Distance between spindle center and column(mm)	297	297
SPINDLE	Spindle speed(r/min)	100-4000	100-6000
	Spindle taper	BT30	BT30
	Tool clamping way	Manual/Pneumatic	Pneumatic
	ATC capacity(optional)	no	4pcs Simple ATC
FEEDING	Feeding speed(mm/min)	0-2000	0-2000
	Rapid feeding speed:X,Y,Z axis(m/min)	6	6
ACCURACY	Positioning accuracy(mm)	0.04	0.04
	Repeatability accuracy(mm)	0.02	0.02
	Min.set unit(mm)	0.001	0.001
MOTOR	Main motor power (kw)	1.5(A/C motor)	2.2/3.7
	Feeding motor power:X/Y/Z Axis(kw)	2001/1/1	1/1/1.5
TOOLS	Max.size of tool(mm)	Φ60x175	Φ60x175
	Max.loading weight of Tool(kg)	3.5	3.5
OTHERS	N.W(include machine stand)(kg)	900	1000
	Overall size(L×W×H)(mm)	1640x1205x1950(2050)	1640x1205x1950(2050)
	Packing size(L×W×H)(mm)	1900x1620x2480(2580)	1900x1620x2480(2580)
	Loading amount(20")	3sets	3sets

XK7124 China 3-Axis small Vertical CNC Milling Machine
Standard Accessories:
--Coolant
--Work light
--Manual Lubrication system
--GSK 983 controller
--Steel-welded stand
--Semi-protection


Optional Accessories:
--Cast Iron stand
-- Vice
--Tool Holder
--Automatic lubrication system
-- SIEMENS 802S. 802C control system.
--Servo control

XK7124 China 3-Axis small Vertical CNC Milling Machine

packing size:1900x1620x2480(2580)mm
weight:900kgs
package in ply wooden pallet with full closed plastic cover.
Our service:
We also would like to let you know our warranty about our machines.
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.

---
