Universal Metal Drill Machine Price Z3050X16B Borehole Radial Drilling Machine

Product Description

Universal Metal Drill Machine Price Z3050X16B Borehole Radial Drilling Machine Product Description
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic retraction
Strengthening spindle Product Parameters
Product main technical parameters

SPECIFICATIONS	Z3050×16B
Max.drilling dia (mm)	50
Distance from spindle nose to table surface(mm)	260-1050
Distance between spindle axis and column surface (mm)	360-1600
Spindle travel (mm)	270
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	35,60,105,170,290,395,540,710,1310
Spindle speed step	9
Spindle feeding range(r.p.m)	0.1,0.16,0.22,0.25,0.35,0.56
Spindle feeding step	6
Rocker rotary angle (°)	±90°
Main motor power (kw)	4
Maximum resistance to the spindle (N)	16000
Movements motor power (kw)	1.5
Weight (kg)	2600
Overall dimensions (mm)	2170×950×2450

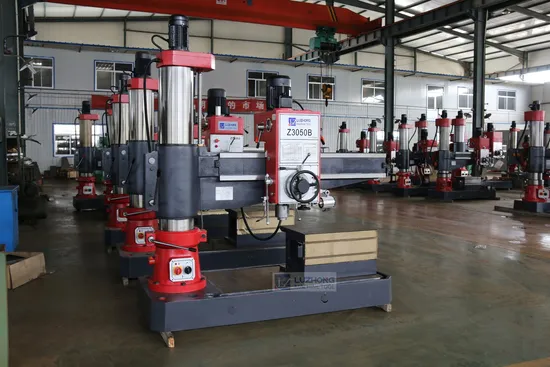

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
