CNC Turning Milling Turn Mill Complex Machining Center for Sprocket/Flange/Rotor Shaft/Blade/Seat/Gear Hollow Shaft

Product Description

Turn & Mill Complex Machining Center
Turn & Mill Complex Machining Center has higher flexibility, is able to achieve complete processing with one time clamping, to process complex workpiece in 5-axis simultaneous mode. Second turret is optional, is suitable for middle to large amounts processing output tasks with 2nd turret working together.
Higher precision and lower processing costs, higher added value is generally better than that of universal turning centers. Turn & Mill Complex Machining Center is a high productivity machine.
Features
Δ Turn & Mill Complex Machining Center equipped with sub-spindle for turning;
Δ Large size linear guide ways have high stability and durability;
Δ B-axis standard high torque motor, powerful tool spindle for turning and milling tasks;
Δ Small footprint provides a large and spacious processing work area;
Main and counter turning spindles are built-in electric spindles;
Tool spindle taper HSK63/HSK100;
Max machining length 1000mm;
Y axis travel +100mm;
B axis +120°;
1x 24 pockets umbrella type ATC installed on top of counter spindle;
High pressure coolant pump standard;
Newest version CNC control, Siemens SINUMERIK ONE;

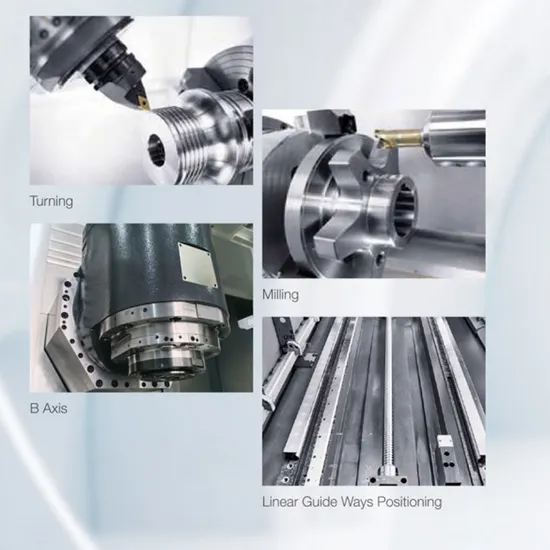

Turning
Longer travel column moving with biggerturning diameter;
Multiple torque options available for spindles;
Second turning spindle is standard for 6-sided turn & mill complex machining tasks,meanwhile servo tailstock option available.
Milling
High stability dynamic column structure, 400mm travel Y axis provides eccentric machining capability;
Higher milling performance, with a torque of 100Nm for the tool spindle and a maximum speed of 12000rpm;
5-axis simultaneous machining to free form surfaces;
Higher processing flexibility
High precision B-axis with a swing range of +120°, adjustable minimum angle value of 0.001 °
Long term stable high-precision
All axes are equipped with direct measuring system to ensure higher accuracy;
Dynamic compensation of the spindle and chiller cooling spindle motor and headstock,achieving higher thermal stability;

		G-10	G-20	G-30
Working area
Max swing over bed	mm	530	700	1000
Max swing over turret	mm	450	630	900
Max turning diameter	mm	520	600	850
Spindle surface distance	mm	1420	2260	3260
Spindle1, Left
Chuck diameter	mm	250	250	250
Spindle nose (FL)		170H5	220h5	FL220
Spindle bore	mm	87	90	95
Tie-rod bore	mm	66	75	75
Front bearing diameter	mm	130	140	140
Drive rated power, Max 100/40% DC	kw	25	33.5	33.5
Spindle speed range	rpm	4000	4000	4000
Torque max	Nm	380	580	580
C axis speed			200
C axis torque	Nm	200	200	200
Degree, minimal	°	0.001	0.001	0.001
Spindle2, Right
Chuck diameter	mm	210	250	250
Spindle nose (FL)	mm	170h5	170h5	FL220
Spindle bore	mm	87	87	95
Tie-rod bore	kw	67	67	75
Front bearing diameter	rpm	130	130	140
Drive rated power, Max 100	Nm	20	25	33.5
Speed range		4500	4000	4000
Torque, 40% DC	Nm	170	170	320
C axis speed	°		200
C axis torque	mm	170	200	200
Degree, minimal	mm	0.001	0.001	0.001
Sliders
X travel	mm	500(+490,-10)	800	850
Y travel	mm	±100	±200	±200
Z travel	mm	1250	2050	3050
Rapid traverse X//Z	m/min	30/24/30	30/24/30	30/24/30
Thrust X/Y/Z	KN	7.5/4.5/12	7.5/7.5/12	7.5/7.5/12
Resolution X/Y/Z	mm	0.001	0.001	0.001
Ball screw X/Y, d	mm	Φ40	Φ40	Φ50
Ball screw Z, d	mm	Φ50	Φ40	Φ50
ATC/Magazine
Tool positions		24	40	40
Tool diameter/length max	mm	80/300	80/300	80/300
Max tool weight	Kg	6	7	7

working area:
Processing Capacity
