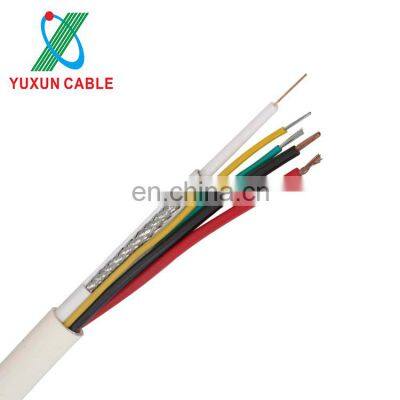

YUXUN CCTV Cable RG59 Coaxial + 4 Core Power Data Cable

Product Description

Product Description
YUXUN CCTV Cable RG59 Coaxial + 4 Core Power Data CableProduct Description

MINIRG59+2*0.5mm2+2*0.222
Physical Dimensions
MINIRG59	Conductor 1	MATERIAL	BC
		CONSTRUCTION	1/0.404±0.005mm
	Insulation 1	MATERIAL	Foamed PE
		DIAMETER	2.0±0.15mm
	Shield 1	MATERIAL	AL
		CONSTRUCTION (Foil)	10mm
	Shield 2	MATERIAL	AM
		CONSTRUCTION (Braiding)	48/0.12±0.003mm
	Jacket 1	Diameter	3.5±0.2mm PVC
Power	Conductor 2	Material	16/0.2±0.04mm BC
	Insulation 2	Diameter	1.8±0.05mm Red/Black PVC
DATA	Conductor 3	Material	7/0.2±0.04mm TC
	Insulation 3	Diameter	1.3±0.05mm Blue/Green PVC
Out Jacket		Diameter	7.0±0.2mm PVC Black

Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.

Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!
