Product Description
Product Description

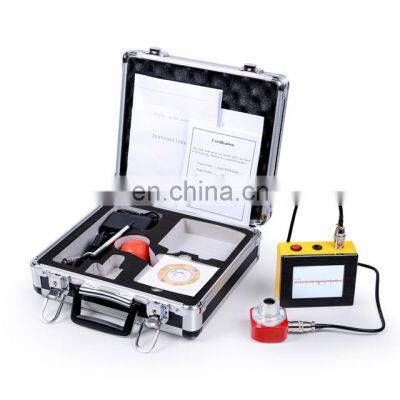

Products DescriptionIntroductionCK-102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width. Equipment mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1 m connection cable) constitutes a measurement program automatically scans the capture cracks and crack width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number,crack photo as a standard BMP format and stored directly to any U disk to facilitate further image analysis of the user or print archive. Details ImagesMaximum detection range0-8mmAccuracy0.02mmMagnification0 times / 20 times / 13 times / 10 timesOperating Temperature-20 ~ 60 ° CHost Interfacestandard USBImage storage formatBMP format, 24 bit color / 320 * 240Power supplylithium batteryStandby time18 hoursHost size113x70x16.5mmProbe48x56x58mmPackingMain unit×1UnitProbe (with 1.5m cable)×1UnitQuick Charger×1UnitBlowing Ballon×1UnitAluminum carrying case×1UnitManual, warranty card, software×1Unit eachOur facetoryRelated ProductContact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at TEL:86-411-39685079Whatsapp:+8615541112235Skype:tmeasurement02web:/
>>
