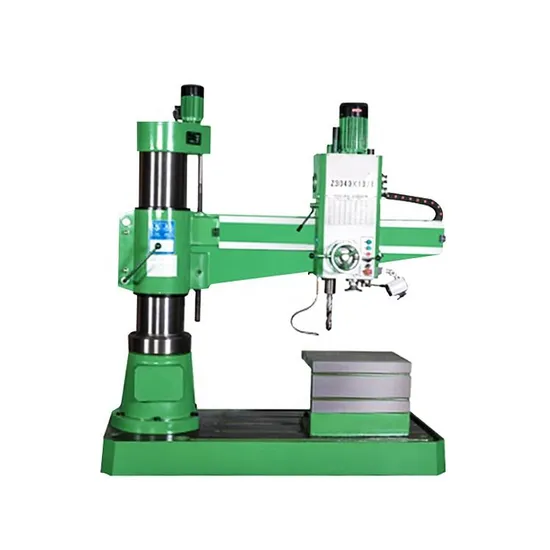

Good Quality Radial Drilling Machine Heavy Duty Drill Machine

Product Description

Product Description
Features
With wide range of speed and feed,with manual,power and fine feeds.The feed of machines are very easily engaged and disengagedat any time.
With safe and reliable feed safely machine,all parts easy operation and change.

All controls centralized on the head stock easy operation and change,Clamping for assemblies and speed change of spindle achiered by hydraulic power,cmle is sensitna owet nelile Main parts are made by machine center which import from KIA with high precision and efficiency ,ensuring reliability and high quality.

Model		RD4016	RD5016	RDQ5020
Max.Drilling capacity	mm	40	50	50
Distance spindle axis to column generating line	mm	350~1600	350~1600	350~2000
Diameter of column	mm	350	350	350
Spindle taper		MT4	MT5	MT5
Spindle travel	mm	315	315	315
Spindle speeds range	r/min	25~2000	25~2000	25~2000
Spindle speeds series		16	16	16
Range of Spindle feeds	mm/r	0.04~3.2	0.04~3.2	0.04~3.2
Spindle feeds		16	16	16
Distance spindle nose to working surface of base	mm	350~1250	320~1220	320~1220
Dimension of worktable	mm	630x500x500	630x500x500	630x500x500
Dimension of base	mm	2400x1000x200	2400x1000x200	2400x1000x200
Overall Size	mm	2500x1060x2650	2500x1060x2650	2900x1060x2650
Power of Main motor	kW	3	4	4
G.W/N.W	kg	4300/3500	4300/3500	4350/3550
Packing dimension	cm	260x112x260	260x112x260	300x112x260
