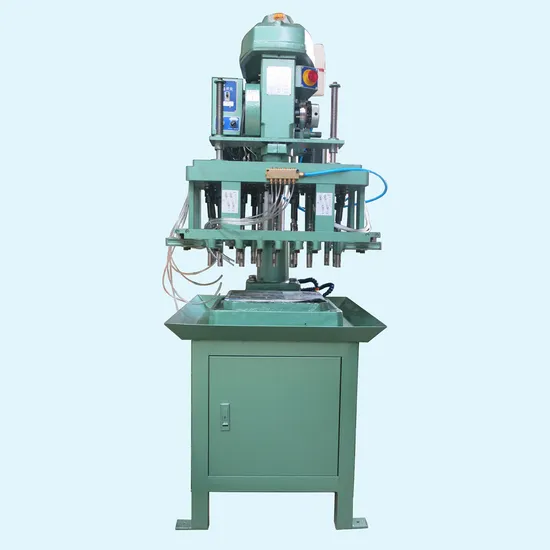

Lowest Price for Multi-Spindle Head 35mm Drilling Chamfering Machine

Product Description

Product Description
Lowest Price For Multi-spindle Head 35mm Drilling Chamfering Machine

CX-15035 Parameters
Max Drilling Diameter	35mm
Spindle Travel	130mm
Distance from Spindle Center to Column	210mm
Distance from Spindle Nose to Working Table	335mm
Spindle Taper	JT6/ER25
Spindle Rotation Range	1400/2000rpm
Working Pressure	20-25kg/cm2
Base Size	297*440mm
Total Height	1080mm/1820mm
Motor Power	1.5kw
Voltage	240v/380v/415v
Cooling Pump Motor Power	45w
Weight	280-490kg

Standard Type Drilling Machine

Drilling Machine	CX-8510	CX-13016	CX-15035
Maximum Drilling Diameter	10mm	16mm	35mm
Electricity	380V/415/440V 3 Phase	380V/415/440V 3 Phase	380V/415/440V 3 Phase
Spindle to Column Distance	200mm	210mm	250m
Spindle Nose to Work Table	100-330mm	100-350mm	120-420mm
Spindle Speed	1400/2800 rpm	1400/2000 rpm	1000/1400 rpm
Machine Head Travel	280mm	280mm	320mm
Motor Power	0.75kw	1.5kw	2.2kw

Standard Type Tapping Machine

Tapping Machine	CX-4508	CX-6516	CX-6516
Tapping Range	1-8mm	2-16mm	5-32mm
Machine Head Travel	260mm	300mm	460mm
Spindle Nose to Work Table	90-350mm	100-350mm	100-600mm
Multi spindle Capacity	M2*16,M3*9,M4*5,M5*3,M6*2,M8*1	M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1	M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1
Motor Power	0.75kw	1.5kw	2.2kw
Electricity	380V/415/440V 3 Phase	380V/415/440V 3 Phase	380V/415/440V 3 Phase
Spindle Stroke	45mm	65mm	65mm

Drilling and Tapping Heads

CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD	Maximum Drilling φ1-φ10mm Main Spindle Taper ER20/JT6 Main Spindle Travel 85mm Spindle Max Rotating Speed 1400 (r/min) Cylinder Area 21.6m2 Center Height 70±0.01 Motor 0.75KW Net Weight 38kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD	Maximum Drilling φ1-φ16 mmMain Spindle Taper ER25/JT6Main Spindle Travel 130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area forward 37.1m2 backward 15.8m2Center Height 70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD	Maximum Drilling φ1-φ35mmMain Spindle Taper MT4/LINE GROOVEMain Spindle Travel 150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area forward 71.2m2 backward 31.4m2Center Height 90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 280*860*470mm

Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-----We are a manufacturer.2. What is payment terms?
-----Usually 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM services?
-- Yes, we provide OEM services.5. Can you send engineers to serve overseas ?
-- Yes, we can , but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.

---
