High Precision CNC Surface Grinding Machine Automatic Surface Grinder Sg40100nc2

Product Description

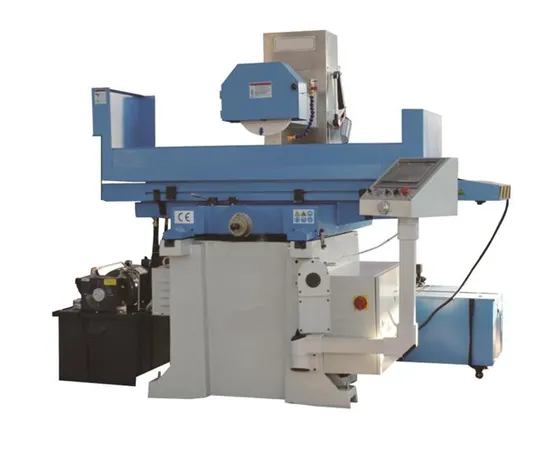

High Precision CNC Surface Grinding Machine Automatic surface grinder SG40100NC2

Full Auto
Vertical	AC servo motor
Cross	Motor
Longitudinal	Hydraulic
Controller	GS-PLC-Touch

Technical Parameters:

Model No.	SG40100NC2
Item No.
Technical Parameters
Table size(LxW)	1000X400 mm
Max.Grinding Length	1030 mm
Max,Grinding width	420 mm
Distance from table surface to spindle center	480 mm
Slide way	One flat rail one V rail
Maximum work load	250 kg
Magnetic chuck size	1000x400 mm
Number of T-slot	14x1 mm x n
Speed of table longitudinal movement	7~16 m/min
Cross feed on handwheel	0.001/0.01/0.1/Graduation 0.1/1/10/revolution
Vertical MPG feed	0.001/0.01/0.1/Graduation 0.1/1/10/revolution
Wheel size(dia x width x bore)	Ø300x30x Ø75 mm
Spindle speeds	1440 rpm
Spindle motor	4 kw
The machined surface of the base of parallelism	0.005/300 mm
Hydraulic motor	2.2 kw
Vertical feeding servo motor	0.75 KW
Cross feed motor of table	0.75 KW
Minimum of numerical	80 L
Coolant pump	0.09 kw
Packing size(LxWxH)	2920X1920X2220 mm
Net/Gross weight	2.52T,2.87T

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
