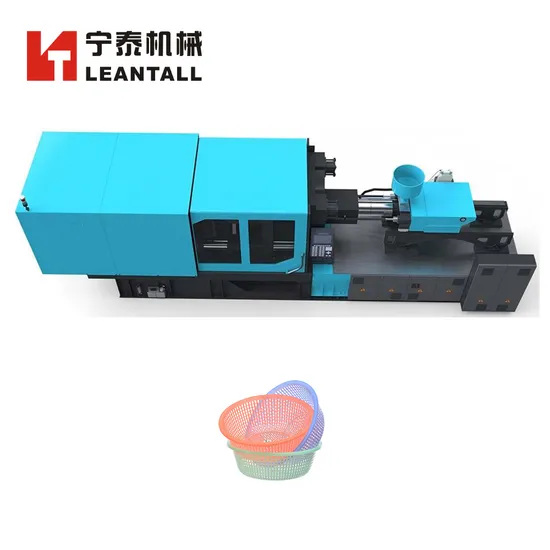

Nt750 Ton High Speed Injection Molding Machine Servo System Plastic

Product Description

Product Parameters

Part	Name	Unit	NT750
Injection Unit	SCREW DIAMETER	mm	90	95	105	110
	SCREW L/D RATIO	L/D	23	22	20	19
	INJECTION STROKE	mm	460	460	460	460
	NJECTION SPEED	Mm/sec	81	81	81	81
	SHOT VOLUME(THEORETICAL)	CM3	2926	3260	3983	4371
	INJECTION WEIGHT(PS)	g	2662	2966	3624	3977
	INJECTION PRESSURE	Mpa	195	175	143	131
	INJECTION RATE	cm³/sec	515	574	701	769
	SCREW SPEED	rpm	109
Clamping Unit	CLAMP FORCE	Kn	7500
	OPEN STROKE	mm	1000
	SPACE BETWEEN TIE BARS	mm×mm	1020X970
	MAX.MOULD HEIGHT	mm	960
	MIN.MOULD HEIGHT	mm	400
	EJECTOR STROKE	mm	340
	EJECTOR FORCE	Kn	210
	EJECTOR NUMBER	N	17
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	45+37
	HEATING POWER	Kw	46
	MACHINE DIMENSION(L*W*H)	m×m×m	11*2.4*3.2
	MACHINE WEIGHT(ESTIMATE)	T	35

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
