Sugarcane Tiller Cultivator Agricultural Tiller Cultivator

Product Description

sugarcane tiller cultivator agricultural tiller cultivator

This machine can complete the mechanized joint operation of the field management functions such as crushing soil, weeding, fertilizing, and cultivating soil at the same time, which is conducive to the growth of sugarcane root system. Moreover, it can resist drought and conserve moisture, prevent lodging, dramatically improve work efficiency, reduce cost and labor intensity.It is suitable for sugarcane field management in plains and hilly areas with small slope.
Features It is composed of tractors with more than 80hp as power, including suspension,transmission box assembly, cutter roller shaft transmission box assembly, fertilizer organization assembly, soil plough assembly,rotary blade roller and other components.Sugarcane field working are completed simultaneously, such as crushing soil, weeding,fertilizing, and cultivating soil,which can significantly reduce labor intensity and improve working efficiency.

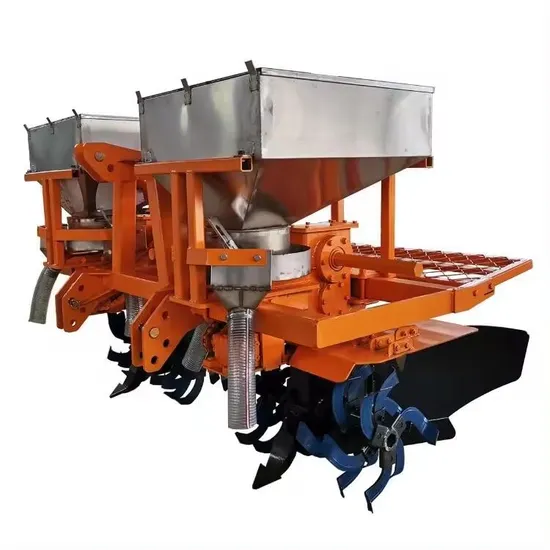

Sugarcane cultivator main structure
1. Frame assembly 2. Transmission box of rotary
3. Main transmission box
4. Fertilizer tank
5. tiller roller
6. Fender
7. Ridging plate

Model	3ZP-1800	3ZP-1400
Connecting way	Three-point suspension	Three-point suspension
Number of row in one operation	2 row	2 row
Adjustable range of row spacing	1200-1800mm	1150-1400mm
Mate power	≥73.5kw	≥73.5kw
Soil cultivation method	Rotary tillage	Rotary tillage
Number of rotary blade	4x12	4x9
Capacity of fertilizer tank	175L*2	175L*2
Oversize	1500×2200×1350mm	1500×1450×1250mm
Weight	870kg	800kg

---
