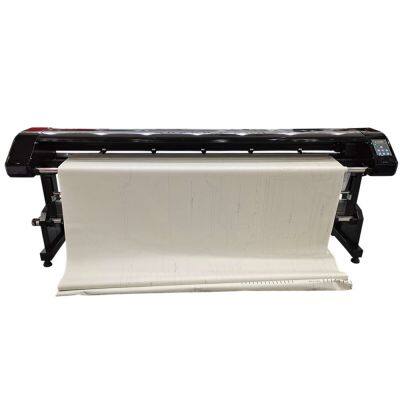

EPSON Printing Head 350ml Big Ink Tank Inkjet Printing Plotter Paper Plotter
This Super EPSON Printing Head Big Ink Tank Printing Plotter is New Arrival and with Super 350ml Ink Tank or Cartrige--Normal HP45 Ink Cartridge is only 42ml Each, The Cost Performance is much Higher.And EPSON Printing Head Printing Speed is 120 Square Meters Per Hour While the Normal Dual Head HP45 Ink Cartridge Plotter is Only 90 Square Meters Per Hour Printing Speed.
FEATURES AT A GLANCE
High-speed Servo ControlFull Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)
Independent Output Manager Supports File Background Automatic Queuing PrintingUsing advanced SOPC technology
Support breakpoint resume, ensure reliable data transmission and printing
Two Directions High Speed Printing
Super EPSON Ink Box, Big Capacity Continuous Ink Supply. Easier Operation to add the Ink.
No need to replace the Ink Box, More Environmental Friendly and More Economic.
Side Body
Printing Head
Back Body
00:04
01:07
Product Overview
PRODUCT SPECIFICATIONS
Technical ParametersType: Big Capacity EP350 Ink Box--Continuous Ink Supply, No Ink Box Replacement Product Model GME380-190 GME380-210 GME380-230 GME380-250 Printing Width(cm) 190 210 230 250 Feeding Paper Width(cm) 200 220 240 260 Printing Speed: Two-way high speed 120 ㎡/h Printing format: HPGL drawing language,compatible with domestic and foreign CAD software,special format can be customized Print resolution: 150-600DPI Type of Nozzle: EPSON TX800 Line quality: Clear,smooth,no seam,optional 1-8 lines Nozzle Cleaning: Automatic cleaning before printing Paper Loading: Front heightening device to support paper roll with diameter of 28cm Paper Feeding: Hidden infrared precise paper feeding system,continuous 700 meters without deviation Receiving and Delivering Paper: Unattended automatic paper receiving and feeding Print Media: 40-80g,ordinary roll printing paper; 80-250g,single brown paper, Pure Printing Plotter, No Cutting Communication Interface: Network port,multiple computers can separately control printing Power Supply Voltage: 220V/50Hz(Standardly), 220-240V Compatible, 110V-120V Power Optional Button Panel: Press the keys operation,simple,convenient,durable Machine Structure: Die standardized metal structure,high precision and long life Output Center: 1.support manual or automatic printing 2.optional ink-saving mode 3.support online printing File Format: HP-GL, DXF, PLT, HPGL, etc(Compatible with all CAD Editing Softwares, PLT File Recommended) Working Temperature: 10~35℃ or 50~95℉; Humidity: 15%--85% RH(With no Condentation) Connection Port or Interface: LAN Port or Network Port
Successful Project
Agent in Vietnam
Distributor in Bangladesh
Partner in Turkey
Onsite Installation
Flatbed Inkjet Paper Pattern Cutter
Onsite Installation
Template Sewing Board PVC Sheet Milling Cutter
Onsite Installation
Vertical Inkjet Cutter Plotter
Company Profile
Wuhan Gemei Joint Technology Co., Ltd.is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is
a specialized company specializing in the research and development, production, sales and service of automation equipment for the
industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high
technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises.
Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise
and an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.
Exhibition
Certifications
FAQ
1. Q: Are you a manufacturer? A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years. 2. Q: How do you pack these products? A: Usually packed in wooden case and can pack according to export standard or your requirement. 3. Q: Is it customizable(OEM/ODM service)? A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements. 4.Q: After-sales service A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype 5.Q: What is your lead time? A: Spot goods usually take 2-4 days, and customization takes 5-7 days
>>
