UL 3.5 3.5mm 5.5mm 38mm2 100mm2 120mm 120mm2 250mm2 10 12 AWG Copper/Aluminium PVC Nylon Thhn/Thwn-2 600V Electrical Building Cable Wire

Product Description

Product Description
90ºC THHN/THWN-2 PVC Insulated,Nylon cable ,600V Power Cable

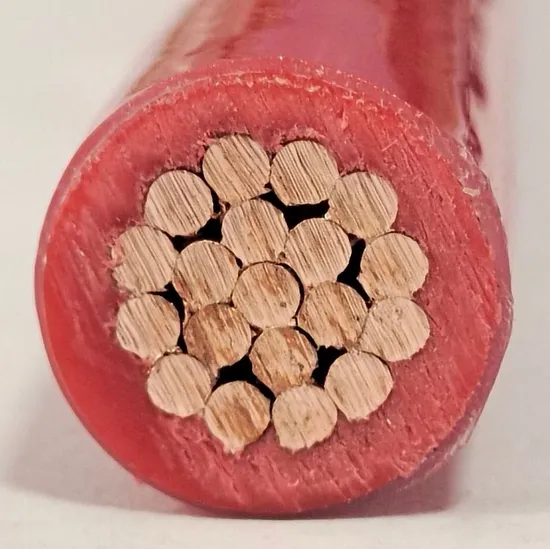

APPLICATION A heat-resistant thermoplastic (PVC) insulation with nylon jacket suitable for the type of service where the conductor temperature does not exceed 90°C in dry location or 75°C in wet location. It is employed as insulation for class THHN building wire CONSTRUCTION 1.Annealed Copper Solid/Strand Conductor 2.Core insulation of polyvinyl chloride (PVC) 90ºC,Color can be on request 3.Jacket of Nylon THHN/THWN/THWN-2 Difference:

THHN	THWN	THWN-2
T = Thermoplastic	T = Thermoplastic	T = Thermoplastic
HH = High Heat Resistance	H = Heat Resistance	H = Heat Resistance
	W = Water Resistance	W = Water Resistance
N = Nylon Coating	N = Nylon Coating	N = Nylon Coating
Temperature Rating = 90°C (Dry)	Temperature Rating = 90°C (Dry), 75°C (Wet)	Temperature Rating = 90°C (Dry & Wet)

TECHNICAL DATA SHEET THHN (600V/90ºC)

Conductor Size (mm²)	Approximate AWG/MCM	Nos. Of Strand Wire	Conductor Diameter (mm)	Insulation Thickness (mm)	Jacket Thickness (mm)	OD (mm)	Appr. Weight (kg/km)	20ºC Conductor D.C Resistance Max.(Ω/km)	Ampacity (A)
2.0	14/7	7	1.8	0.4	0.1	2.8	24	9.42	35
3.5	12/7	7	2.4	0.4	0.1	3.4	39.5	5.3	40
5.5	10/7	7	3.0	0.5	0.1	4.2	61	3.4	55
8.0	8/7	7	3.6	0.8	0.13	5.46	93.2	2.36	75
14	6/7	7	4.8	0.8	0.13	6.66	155	1.34	100
22	4/7	7	6.0	1.0	0.15	8.3	240	0.849	140
30	2/7	7	6.9	1.0	0.15	9.2	310	0.618	170
38	1-19	19	8.0	1.3	0.18	10.96	416	0.491	195
50	1/0-19	19	9.0	1.3	0.18	11.96	516	0.387	235
60	2/0-19	19	10	1.3	0.18	12.96	626	0.311	260
80	3/0-19	19	11.5	1.3	0.18	14.46	811	0.228	320
100	4/0-19	19	13	1.3	0.18	15.96	1021	0.187	370
125	250MCM	37	14.7	1.6	0.18	18.26	1306	0.138	420
150	300MCM	37	16.1	1.6	0.2	19.7	1553	0.124	475
175	350MCM	37	17.3	1.6	0.2	20.9	1786	0.104	535
200	400MCM	37	18.2	1.6	0.2	21.8	1960	0.094	570
250	500MCM	37	19.0	1.6	0.2	22.6	2393	0.0739	655
300	650MCM	61	20.5	1.8	0.23	24.6	2835	0.0601	720
400	800MCM	61	26.1	1.8	0.23	30.2	3936	0.0470	890

Company Profile
Certifications
Quality Inspection
Cooperative Customers
Packaging & Shipping
FAQ
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide oem project service?
Yes,oem & odm order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.

---
