Touchless Car Wash Machine Car Wash Machine Automatic Machinery

Product Description

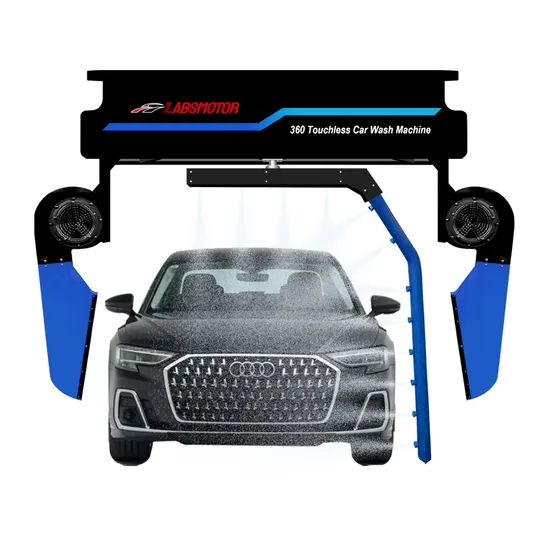

High Quality Automatic Car Washing Machines Touchless Car Wash Machine System For Luxury Car
Product Description1.This car washing machine is suitable for the car, jeep, and minibus to high pressure water washing,
wax and drying. Canidentify the car model with photoelectric sensor controlled by CPU.
2.Introduce advanced technology from Italy, European type stream line design ,not only good look but
also with reliable safety.
3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.
4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about
100,000 car-times.Inclinable side brush strengthens cleaning ability around the car.
5.The dovetail foam brush makes the car washing more quiet and clean.
6.Main components from world famous manufacturers ,high reliability ,long using life.
7.Fault Self-detect function.
8.Three function(Car wash, Inspection and management)to an operation panel
9.Automatic control and multi-function operation ,such as washing ,drying and wax.
10.Dried by four sets offans and car shape imitating dry system.
11.Long durable time: more than 10 years
Details DisplayWASHING PROCESSCleaning of High-pressure ChassisDirt especially snow-melting agent stuck to
chassis will lead to rusting of chassis without
timely cleaning. Strong fan-shaped water is
used to brush dirt on the chassis.
Energy-saving Smart rotating Spraying Spraying of atomized free brushing car wash
liquid with small independent mechanical arm
will promote dirt cleaning efficiency with
separation of car wash liquid in an energy-saving way.
Smart rotating Spraying of Maintenance ShampooMechanical Arm makes evenly spraying to cover
the car with maintenance shampoo foam atomized
with special device to play its role in protection of
paint surface.
Smart rotating High- pressure BrushingSpraying mechanical arm makes all-round cleaning
in an equal velocity, equal distance, equal pressure
fan-shaped water medium polishing way, with 360-
degree surrounding high-pressure untouched.
Bright Colored CoatingCoating water covers the car's paint surface with a
layer of high molecular polymer that will turn into a
solid protective film after mixing, which provides the
car with a strong layer of protection paint to prevent
it from damages like acid rain, pollution and ultraviolet rays.
pressure Brushing Quick Drying SystemRealize quick drying with high-pressure fan through
oriented jet flow, low power, high wind speed and
high pressure. Make the best combination between
effect and energy consumption with sectional
strengthening for the whole car body.Smart Collision Prevention SystemThe Car Wash Machine is a smart car wash
device which can wash cars on the premise of safety.
Security protection is available in all kinds of
emergencies to ensure clean wash and safe operation.
24-hour Fully Smart Unmanned SystemThis system is capable of finishing the whole car
wash process with computer's smart control in
unmanned operation condition according to car
wash procedure preset by customers.
Product Parameters

Product Name	Toucless Car wash Machine
Model	LABS-01A
Warranty	3 years warranty for whole machine
Standard Machine Installation Size	L*W*H=7000*3700*3100mm
Max. Car Size	L*W*H=6000*2200*2000mm
Shampoo Consumption	10ml- 40ml/car
Foam Consumption	10ml- 40ml/car
Water Wax Consumption	10ml- 40ml/car
Water Consumption	Standard wash 94L/car, Fine wash120L /car
Electricity Consumption	Standard wash 0.52kwh/car, Fine wash 0.99kwh /car
Time Consumption	3-8min/car, 8 hours 100 cars, 6 kinds of car wash models can be DIY
Power Supply Requirements	AC380V/50Hz/3Ph/35KW, 12smm copper cable
Air Switch	80A air switch
Water Pump Motor Power	15KW/80Bar-100Bar working pressure
Fan Motor Power	4 pcs 4KW blowers total 16KW/ Pressure 7300pa/ Air flow 15300CBM/H
Longitudinal Motor Power	0.37KW digital drive motor
Transversal Motor Power	0.75KW digital drive motor
Rotary Motor Power	0.75KW digital drive motor
Chemical System	0.75KW
Central Processing Unit PLC	IndustrialPLCembeddedcentraliprocessor+dual-coresystem
Drive System	Promise frequency digital drive
Detection System	Smathree-dimensional monitoring system
Sensing System	Ultrasound+ Absolutevalueofthedig talencoder
System language	English ,Chinese,Russian, French, Spanish, Portuguese, Arabic (Can be customized)
