US$2,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Max.Drilling Dia.
40 mm Cast Iron/ 32mm Steel
Name
Multi Head Drilling Machine
Product
DC Motor for Drilling Machine
Key Words
Hydraulic Drilling Machine
Transport Package
187× 97× 220
Specification
drilling dia 40 mm
Production Capacity
100 Sets/Year
Product Description

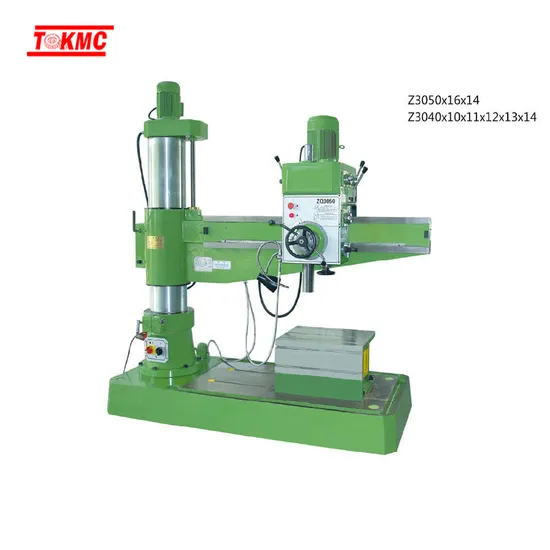

iron drilling machine
Feature :
Machine speed has a wide range of speed, can be carried out
Maneuvering, manual manipulation, can be easily connected at any time
Or cut off the feed;
Swing arm around the column can be tilted ± 45
The main key components imported processing center processing, fine
High degree of high efficiency, to ensure the quality of the machine stable
Be reliable
Small size, small footprint, full-featured, can be
Widely used in drilling, expanding, reaming and tapping operations.
Standard accessories:
Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield
| Model | UNIT | Z3040×10 | Z3040x8 | Z3040x11 | Z3040x14 | Z3040x13 |
| Max.drilling dia. | mm | 40/32 steel | 40/32 | 40/32 | 40/32 | 40 |
| Distance between spindle axis and column surface | mm | 200-1000 | 320-820 | 350-1100 | 320-1370 | 300-1300 |
| Distance from spindle nose to table surface | mm | 264-1064 | 120-860 | 320-1180 | 380-1240 | 300-1320 |
| Spindle Cone | MT | No.4 | 4 | 4 | 4 | 4 |
| Spindle travel | mm | 250 | 240 | 180 | 200 | 280 |
| Spindle speed step | | 8 | 6 | 6 | 6 | 16 |
| Spindle speeds range | r/min | 71-1800 | 75-1220 | 75-1200 | 75-1200 | 32-2500 |
| Spindle feeding step | | 4 | 3 | 3 | 3 | 8 |
| Spindle feeding step | mm/r | 0.13-0.54 | 0.1-0.25 | 0.1-0.25 | 0.1-0.25 | 0.1-1.25 |
| The outer column diameter | mm | 240 | 200 | | | 300 |
| Main motor power | kw | 2.2 | 1.5 | 2.2 | 2.2 | 3 |
| N.W./G.W. | kg | 1530/1600 | 1140/1230 | 1500/1600 | 1900/2000 | 2100/2500 |
| Overall dimensions(L×W×H) | cm | 187×97×220 | 155x77x210 | 150x705x220 | 180x81x2300 | 235x106x245 |
>>
