Product Description
Product Description

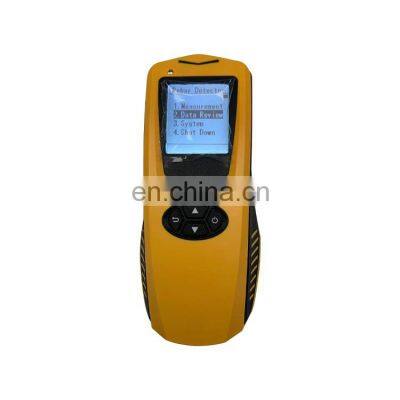

Rebar Detectors Product DescriptionThe first generation portable rebar integrated detector uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology. series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts. The multiple coil structure design make it more accurate＆responsive and higher resolution.ParametersItemsTechnical Spec.Diameter Measuring Range（mm）Ф6～Ф50Measuring Range（mm）Location Range: 1～120 First Range: 1～60 Second Range: 30～120Thickness Measuring Accuracy（mm）1～40±141～60±261～80±381～100±5101～120±8Rebar Location Accuracy1～60±361-120±6Diameter Measuring ModesOptionalJGJ MeasurementOptionalData StorageOptionalOff TimeAutomaticPower SupplyRechargeable Lithium BatteryWorking Temperature-10℃～+42℃Size（mm）188×145×140Weight（kg）0.745Main Features◆ The high resolution LCD display: 128 x 128 pixels; ◆ The intuitive operation and handheld ergonomic design with good durability; ◆ Accurately detect the location of the rebar; ◆ Help extend life of drill and avoid damage when drilling and coring; ◆ The multi coil structure design with high speed, high precision and high resolution; ◆ The built-in high capacity lithium battery, low power consumption, standby for no less than 20h.ApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
>>
