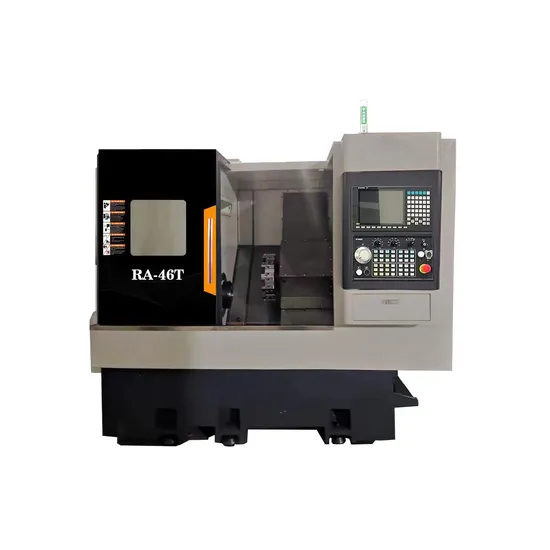

Automated Vertical CNC Drilling Lathe Slant Bed 3/4 Axis CNC Milling Turning Turret Machine

Product Description

Automated Vertical CNC Drilling Lathe Slant Bed 3/4 Axis CNC Milling Turning Turret Machine
Product Description

Processing Capability			Unit	RA-46T
Processing Capability	Maximum bed swivel diameter		mm	Φ420
	Maximum machining diameter		mm	Φ300
	Maximum machining diameter on the tool holder		mm	Φ126
	Maximum processing length		mm	300
	Maximum bar through-hole diameter		mm	Φ46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	450
		Z-Axis	mm	350
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 30 (ball)
Turret	Number of tool positions		pcs	80-12T
	OD tool holder specifications		mm	20x20
	I.D. Tool Holder Specifications		mm	Φ20

CNC turret lathe is widely used in various fields of the manufacturing industry, including the processing of automotive parts, mechanical parts, moulds, shafts, wheels, and various metal parts. It is suitable for the processing of large quantities, high precision, complex shapes, and various materials, which effectively improves the competitiveness and productivity of enterprises.
• High-precision machining: Engineered to meet the most stringent machining precision standards, our machine tool excels in providing extraordinary accuracy for tasks requiring ultra-fine cutting. It ensures impeccable internal and external precision, roundness, and coaxiality, thereby setting a new benchmark in high-precision engineering.
• Multiple processes: This versatile machine effortlessly handles a myriad of complex and varied processing procedures. From radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, it offers comprehensive multi-process capabilities, all integrated into one robust and efficient solution.
• Clamping and positioning the workpiece:
The primary task of the gripper is to firmly secure the workpiece in place, ensuring its position remains fixed throughout the machining process. This stability is crucial for maintaining high standards of accuracy and quality.
By guaranteeing meticulous positioning, the gripper maintains the workpiece's precise alignment with the cutting tool, ensuring superior machining accuracy that meets the most demanding specifications.
• Solve special clamping problems:
For the machining of holes, shafts, slots, and threads in parts that are not bushings or wheels, specialized fixtures provide effective and tailored solutions, ensuring optimal performance and precision.
These specialized fixtures are meticulously designed to cater to specific machining requirements, effectively addressing clamping challenges that conventional fixtures cannot manage, thereby offering unparalleled versatility and efficiency.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Experience unmatched processing conditions in a modern, cutting-edge production environment.
Our cutting-edge imported equipment, including both horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures unparalleled workpiece precision. This dramatically enhances assembly accuracy and extends the longevity of performance.
• State-of-the-Art Detection Techniques
Positioning accuracy is rigorously tested and precisely calibrated using advanced laser technology, strictly adhering to German VDI3411 inspection standards (5 tests per standard).
Every machine tool undergoes rigorous processing tests before leaving our factory, guaranteeing they not only meet but surpass actual processing accuracy standards.
Product sample
• Experience unparalleled efficiency with our Automated Vertical CNC Drilling Lathe, where advanced milling, drilling, and tapping functionalities converge seamlessly to redefine productivity.
• Master the art of precision with our CNC machine, expertly engineered to handle a diverse array of materials including aluminum, steel, copper, and non-metal profiles, ensuring flawless performance across every project.
• Elevate your production capabilities across multiple industries-from 3C electronics and rail transportation to aerospace and linear module guide rails-by integrating our versatile CNC machining solutions into your operations.
Packaging & Shipping
•Highly Protective: Our state-of-the-art packaging solutions guarantee that the Automated Vertical CNC Drilling Lathe arrives at its destination in pristine condition. The robust protection shields the machine from any potential damage during transit, ensuring optimal safety and security.
•Structural Stability: Expertly designed, our packaging enhances the structural stability of the machine, ensuring each component remains intact and arrives in perfect condition. This allows for seamless, immediate usability right out of the box.
•Environmentally Friendly and Recyclable: We are passionately committed to sustainability. Our durable packaging materials are eco-friendly and fully recyclable, significantly reducing environmental impact while maintaining exceptional performance.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. To secure your order, a 40% initial deposit is required, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, allowing you to choose the most convenient option.
3. When is the delivery time?
A: For our standard Automated Vertical CNC Drilling Lathe, delivery is guaranteed within 30 days. Custom or special machines may take longer. Please refer to our delivery schedule when placing your order.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is just one set, and we provide a robust one-year warranty.
5. How are the machines packaged?
A: Each machine is securely packed in a strong wooden case to ensure it arrives in pristine condition.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for your needs. You can also select the model yourself.
Alternatively, send us your product drawings, and we will determine the ideal machine configuration for you.

---
