Rocker Arm Drilling Machine Z3040 Double Column Radial Drilling Machine Z40 Radial Drill

Product Description

Product Description

Model Name	Z3040×13	Z3040×10
drilled diameter	40	40
Distance from spindle end to worktable (mm)	260-1000	260-1000
Distance from spindle center to column busbar (mm)	360-1300	360-1000
Spindle stroke (mm)	200	200
Spindle taper hole	morse 4	morse 4
Spindle speed range	38-1200rpm	38-1200rpm
Spindle speed series	12	12
Spindle feed range	0.10-0.25mm/r	0.10-0.25mm/r
Spindle feed series	3	3
Swing angle of rocker arm	360	360
Main motor power	2.2kw	2.2kw
Power of lifting motor	1.5kw	1.5kw
Shape size	1850×830×2300mm	1600×600×2000mm
weight	1600kg	1300kg

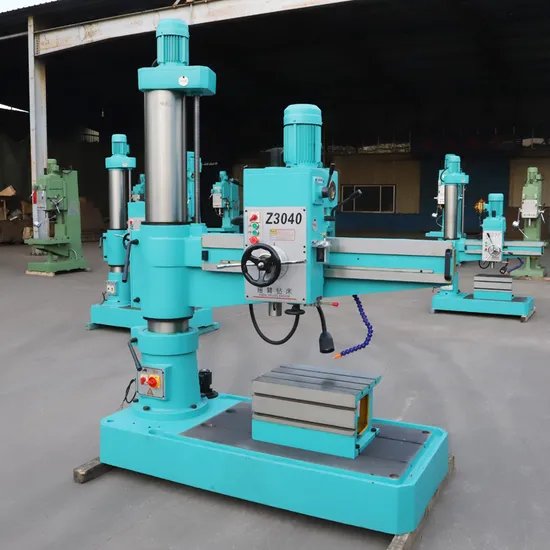

Z3040 radial drilling machine has a drilling diameter of 40mm. It is a kind of hole processing
equipment that can be used for drilling, reaming, reaming, tapping and trimming end faces and
other forms of processing. According to the clamping structure of the machine tool, radial drills
can be divided into hydraulic radial drills and mechanical radial drills. Among the drill presses,
radial drills are easy to operate, have a wide range of applications, are typical, and are suitable
for single-piece or mass production with multiple holes. Hole processing of parts is a common
machine tool in general machining workshops.
FAQ
Q1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact
model .You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: Where is our factory located? How can I visit there?
A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone,
Tengzhou City, Shandong Province, China.
Q3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the
machine, we will send machine photo and video for you to confirm.
Q5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Q6.the warranty?
The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for
you within 48 hours.

---
