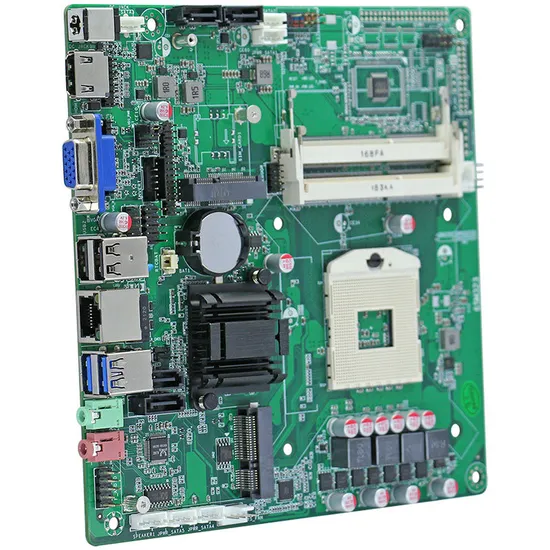

Itx Intel Hm76/77 Industrial Mother Board for Smart Board Touch Screen

US$40.00
1-999 Pieces
US$30.00
1,000+ Pieces

Basic Info.

Model NO.
Z-76D12-AL
Operating Temperature
-40℃ to 85℃
Power Supply Type
ATX12V
Storage Interface
SATA 3
Supported Memory Type
DDR4
System Expansion Slot
PCIe x16
Integrated Graphics
Integrated Graphics
Main Chipset
Intel
Maximum Memory Capacity
64G
Structure
Mini-Itx
Memory
DDR3
SATA Interface
SATA3.0
Printed Circuit Board
Six Layer
Main Board Structure
Integrated
Audio Effects
Not HiFi
CPU
Shrink Bag Intel&Reg Sandy Bridge IVY Bridge
Chipset
Intel Hm76/77 Chip
RAM
1*DDR3-1066/1333/1600 SODIMM Memory Max 8GB
Storage
1*SATA, 1* Msata Sdd/HDD
Audio
Cmedia HS-100b HD Audio
LAN
1*Realtek Rtl8111h Network Card Chip
Display
CPU Integrated Graphics Card
Double Display
VGA/HDMI/Edp1/Edp2, Support Any Asynchr
COM
2*COM Shrink Bag RS232
USB
4USB 3.0 6 USB 2.0
Front I / O
DC in(12V), HDMI, VGA, 2*USB3.0, Rj-45
on Board I / O
1*Edp1 Pins 1*Invert Pin 1*Edp2 Pins 1*VGA Pins
Special Features
Support Guard Dog, No Disk Startup, Network Wake-U
Power Supply Mode
DC12V
Working Humidity
0~50ºC
Transport Package
Box
Specification
282*257*79mm
Trademark
zoomtak
Origin
China
HS Code
8471504090
Production Capacity
99999999999999/Year

Product Description

We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:
>Logo(Packing , Computer Logo)
>Computer Colors
>Security
>Interfaces Customization
>Virtualisation
>Data Protection
We also have 8th 10th 11th 12th OPS Module and Thin Client, Thick Client, Digital Signage Player,Android Box, 4G/5G Cloud Mini Computer and so on. If you have inquiry of different Mini PC, freely to contact us.
Product Description
Specification
CPU Shrink bag Intel® SandyBridge,IvyBridge M Series PGA988:i3,i5,i7 Processor
Chipset Intel® HM76/77 Chip
RAM 1*DDR3-1066/1333/1600 SODIMM memory MAX 8GB
Storage 1*SATA, 1* mSATA SDD/HDD
audio Cmedia HS-100B HD audio
LAN 1*Realtek RTL8111H Network card chip,PCI-E Bus Gigabit Network Card
1*MINI PCI-E Interface,Support for wireless networks: WIFI/BT/4G Module
Display CPU Integrated graphics card
Double display VGA/HDMI/EDP1/EDP2,Support any synchronous/asynchronous dual display
COM 2*COM Shrink bag RS232(9pin Adjustable 5V/12V Voltage),COM2 Support RS485 Function
USB 4*USB 3.0,6* USB 2.0 (On board Pins)
Front I / O DC IN(12V), HDMI, VGA, 2*USB3.0, RJ-45, 2*USB3.0, Mic-in, Line-out Interface
On board I / O 1*EDP1 Pins,1*Invert Pins,1*EDP2 Pins,1*VGA Pins,1*HDMI Pins,
2*COM P2.54mmPins,1*LPT Pins,3 group*USB2.0 Pins(6*USB2.0),
1*SIM Card slot,
1*Pre-audio Pins,1*Power amplifier Pins,1*Buzzer,
1*4-pin Power interface,2 *Fan socket,1*SATA socket,1*SATA Power supply Pins
Special Features Support Guard dog, No disk startup, Network wake-up, power on, timing boot
Mechanical & Environmental
Power supply mode DC12 Heat dissipation mode Fan cooling Size(L*W) 170mm*170mm
Working humidity 0~50ºC Storage temperature -40~75ºC Ambient humidity 0~90% Air humidity, no condensation
Packing list Motherboard *1 SATA Data line Matching
I/O Baffle Matching Hard drive power cord Matching
Application Fields, digital sign, self-service terminal, interactive electronic whiteboard, industrial computer, industrial tablet computer, medical, cloud terminal, etc.
Company Profile Packaging & Shipping
FAQ Q1: Are you the manufacturer of the product?
A: Yes, of course we are. We have own property rights factory.
Q2: Can you provide OEM or ODM services?
A: Yes, we are willing to provide our customers with OEM and ODM services.
Q3. Can you print my logo on the product?
A: Yes, we support.
Q4. What is the warranty?
A: 3 years warranty.
Q5: If the product is out of warranty, what should I do?
A: We will repair it for free.
Q6: Where can I place an order?
A: You can contact us directly via email. If you have any other questions, please feel free to contact us.
