| Tare Weight | About 8.5-13T |
| Dimension | 13000×3000×1650mm (adjustable) |
| Loading Capacity | 40T-100T |
| Axle | 13 T/16T, FUWA /BPW Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 optional |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension(Germany Type or America Type)
Or Air suspension(China brand or BPW brand) |
| Spring leaf | 90(Width)mm×13(Thickness)mm×10(Layer) or 100×12×12mm |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
| Side beam | 16mm-25mm channel steel(Material is Q235 carbon steel) |

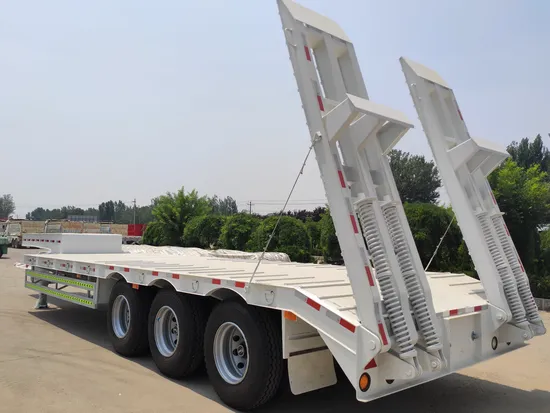

| Ladder | Manual or Hydraulic type |
| Gooseneck | For your choice |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces(Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints. |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |
Detailed Photos Production Photo Packaging & Shipping
Our trailers has different shipping method
