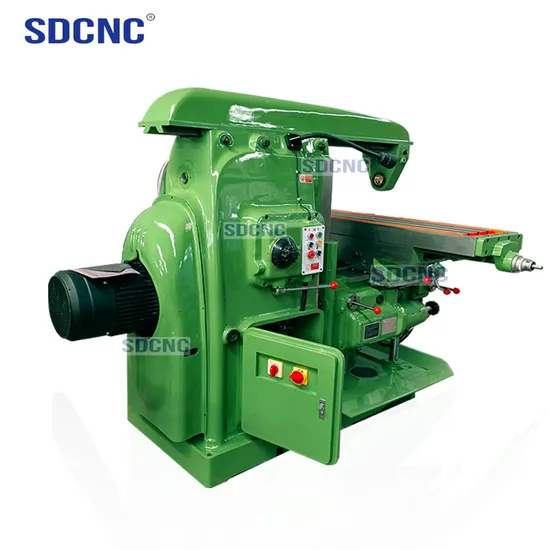

Horizontal X6140 Heavy-Duty Manual Milling Machine Universal Lifting Table

Product Description

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and
other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the
ideal processing equipment.

SPECIFICATIONS

Specifications	Units	X6140
Table size	mm	1700×400
Table load	kg	800
T slot(number-width-pitch)	mm	3-18-90
Table travel	mm	900/880 315/300 350/330
Range of table feed	mm /min	XY:23.5-1180 Z:8-394
Rapid speed of table	mm /min	XY:2300 Z:770
Spindle taper		ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)
Swivel angle of table	°	±45
Distance between spindle axis and table surface	mm	30-380
Spindle motor power	kw	11
Feed motor power	kw	1.5
Weight	kg	3950/4200
Overall dimension	mm	2560×2160×2100

---
