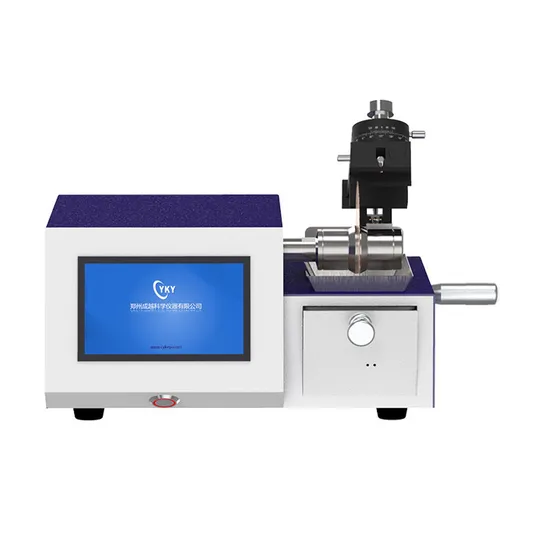

Digital Low Speed Diamond Saw with 6" Diamond Blade & Complete Accessories

Product Description

Digital Low Speed Diamond Saw with 6" Diamond Blade & Complete Accessories
Introduction
is CE certified low-speed diamond saw. It comes with a digital micrometer, digital speed display as well as complete accessories. It accepts 6-inch cutting blade and will be a suitable tool for cutting, dicing and slicing all kinds of materials especially for brittle crystals, ceramics, and TEM samples.
Specification

Power	110V or 220V AC switchable for worldwide use High torque 110VDC motor (70W Max.)
Speed range	0-600 rpm with digital display.
Position Thickness & accuracy	Cutting thickness is controlled by digital micrometer with accuracy of 0.003mm The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm. Thinnest cutting thickness is 0.35mm for most materials
Cutting Width	The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer.
Sample holder	Two angle adjustable sample holder is included, please click picture below for the details
Mini-vise	Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.
Cutting Blades	Max 6" diameter blade (it can also adapt 3" and 4" Dia. cutting blade ) Max cutting depth is 50mm. Three 6" cutting blades are included for cutting various materials: 6" Dia x 0.014" t x0.5" arbor Edge Sintered Diamond Blade 6" x 0.5mm x 0.5" Arbor Abrasive SiC Blade for Cutting Non-ferrous Metals 6" x 0.5mm x 0.5" Arbor Abrasive Al2O3 Blade for Cutting Ferrous Metals. One plastic water-proof box is included to protect water from splashing during cutting Complete accessories are included
Warranty & Compliance	One year limited manufacturer warranty with lifetime support.

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
