Ultimate Plastic Injection Moulding Machine 900L Capacity - up-520t

Product Description

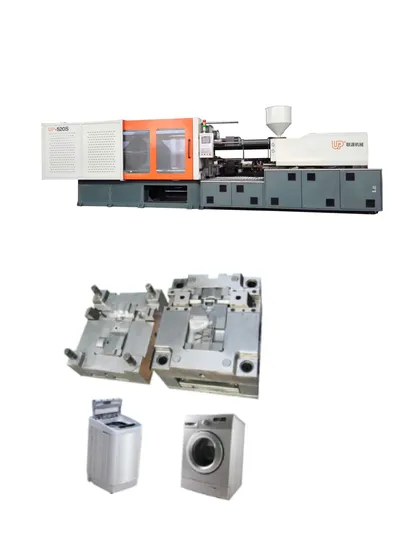

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Our China servo injection molding machine offers advanced features to enhance your manufacturing process:
Modulus of Capacitance: Ensures precise positioning, size, and maximum allowable modulus of capacitance for the guide pillar.
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Specifies mold hole and slot size for efficient molding.
Ejection Mechanism: Provides details on ejection point position, ejector rod diameter, force, and stroke.
Mold Opening Stroke: Indicates opening stroke and maximum distance for mold operation.
Main Features:
30% higher energy saving compared to traditional variable pumps.
Stable and smooth movement supported by AC servo motor.
Effective reduction of energy consumption through hydraulic system optimization.
High-performance European B&R control system for precision.
We are a professional plastic injection molding machine manufacturer with a wide range of clamping force and injection weight options. Our machines are CE and ISO certified, ensuring quality and reliability for all your plastic product needs.

Technical Parameters	Model UP-520T
Injection Unit	A	B	C
Screw diameter (mm)	80	85	90
Shot Volume (cm3)	2135	2410	2702
Injection weight (g)	1943	2194	2495
injection pressure (Mpa)	168	148	132
Screw speed (rmp)	230
Clamping Unit
Clamping force (KN)	5200
Open stroke (mm)	850
Max Mold height (mm)	810
Min Mold height (mm)	330
Space between tie bars(mm)	830x830
Ejector force (KN)	150
Ejector stroke (mm)	240
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	45(63)
Heating power (KW)	31.5
Machine dimension (M)	8.4x2x2.76
Machine weight (T)	21
Oiltank cubage (L)	900

Ningbo Union Power Machinery Co., Ltd.
FAQ
Can we visit your factory?
Yes, you can visit our factory in NINGBO. For overseas customers, we can arrange pick-up from Ningbo Lishe International Airport or Shanghai Capital International Airport. Virtual visits are also available via video.
How can we get the exact price of an injection molding machine?
Contact us with product weight, drawing, and annual quantity for personalized machine model recommendations and quotations.
Do you provide spare parts with the machine?
Yes, we include all necessary spare parts before shipment. Contact us for a detailed packing list.
How about your after-sale service?
We offer manual instructions, engineer training, 24-hour online support, video technical assistance, and field installation guidance post-shipment.
What is the lead time?
Customized machines take 30-60 days after deposit, while stock machines offer fast shipment.
What is the warranty period for your machine?
Enjoy an 18-month warranty for components and technical support.
Do you provide custom machines?
Most of our machines are customized for efficiency, stable performance, short cycle times, high production, and increased profits.
How can we install the machine upon arrival?
Experienced technicians can be sent to your country for installation, commissioning, and employee training.
What's Union Power Machinery's advantage?
We offer turnkey projects including plant design, injection molding machine and mold installation, debugging, and sourcing auxiliary equipment. Save time and costs with our full set of tested machines shipped directly from our factory.

---
