X6325 Universal Milling Machine

US$3,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6325

Structure

Ram

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Inlaid Tooth

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

High Precision

Certification

GS, CE

Condition

New

Work Table Size

254X1370(10”X54”)

RAM Travel

470 mm

Spindle Taper

R8, ISO30, ISO40

Spindle Travel

127mm

Spindle Speed

50Hz:65-4500 60Hz:80-5440

Quill Feed

0.04,0.08, 0.15mm

Spindle Motor

3HP

T-Slot

3X16

Long Travel

820/920 mm

Vertical Travel

350mm

Milling Machine

RAM Milling Machine

Transport Package

1516X1550X2080mm

Specification

1200kg

Trademark

tokmc

Origin

China

HS Code

84595900

Production Capacity

100 Sets/Month

Product Description

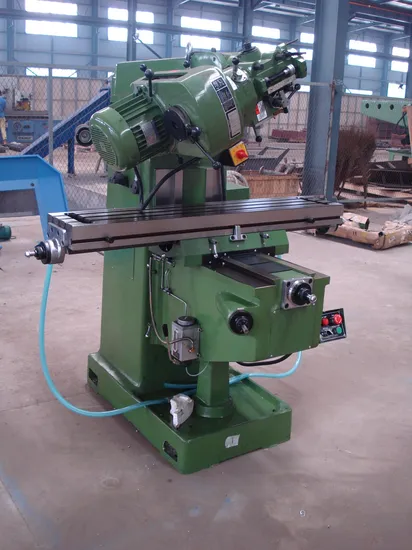

Milling Machine
X6325
•Rectangular guide way adopted on Y-axis and Z-axis make good quality
•The guide way on saddle is lined with TF wearable material which make machine accuracy stability
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 3HP motor, standard spindle 16 speed step pulley head,optional is variable speed.

Model	unit	X6325	X6325A			X6325B
Table size	mm	254x1270(10"x50") 254x1370(10"x54")
Longitudinal travel	mm	820		800	820
		920		900	920
Cross travel	mm	420		380	390
Vertical travel	mm	400		370	350
Ram travel	mm	470		470	470
T-slot		3x16		3x16	3x16
Spindle travel	mm	127		127	127
spindle speed	rpm	16 steps 50HZ:65-4500 60HZ:80-5440 Optional:variable 65-4500
Spindle motor	hp	3		3	3
Spindle taper		R8		R8	R8
Auto quill feed	mm	0.04,0.08,0.15 /0.0015",0.003",0.006" revolution
Head swivel L/R		90		90	90
Head tilting F/B		45		45	45
Weight	kg	1200		1280	1320
