Product Details
Product Description
Product Description
Agency Approvals
W31 are UL 1077 Recognized as Supplementary Protectors.File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.Users should thoroughly review the technical data before selecting a product part number. It is recommended that users also seek out the pertinent approvals files of the agencies/laboratories and review them to ensure the product meets the requirements for a given application.
Electrical Data @ +25°C
Calibration: Will continuously carry *** of rating, may trip between
101% and 134% of rating at 25°C. Must trip at 135% in
one hour.
Maximum Operating Voltages: 50VDC or 240VAC (to 400 Hz).
Interrupting Capacity:
With 4X Max. Series Fuse Protection
0.5-50 amp models — 1000 amps at 240VAC.
30-50 amp models — 1000 amps at 50VDC.
Without 4X Max. Series Fuse Protection
0.5-25 amp models — 2000 amps at 50VDC.
10-20 amp models — 2000 amps at 120VAC.
Resettable Overload Capacity: Ten times rated current.
Dielectric Strength: Over 1,500 volts RMS.
Mechanical/Environmental Data
Endurance Cycling: More than 6,000 cycles at *** of rating, or 10,000
mechanical cycles.
Humidity: Will meet requirements of MIL-STD-202, Method 106.
Salt Spray: Will meet requirements of MIL-STD-202, Method 101, Test
Condition B.
Termination: Two #8-32 screw terminals.
Mounting: W23 — Threaded bushing, 3/8” (9.53mm) diameter.
W31 — Threaded bushing, 15/32” (11.91mm) diameter, with or
without anti-rotation flats.
Weight: Less than 2 oz. (57g).
Ordering Information ：

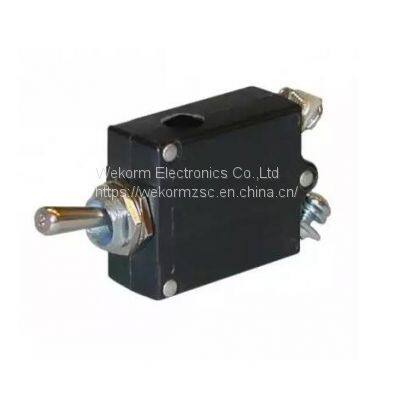

TE thermal circuit breaker W31 series
W31-X2M1G-1
W31-X2M1G-2
W31-X2M1G-3
W31-X2M1G-5
W31 X2M1G - 7.5
W31-X2M1G-10
W31-X2M1G-15
W31-X2M1G-20
W31-X2M1G-25
W31-X2M1G-30
W31-X2M1G-35
W31-X2M1G-40
W31-X2M1G-50
W31-X2M5G-1
W31-X2M5G-2
W31-X2M5G-3
W31-X2M5G-5
W31 X2M5G - 7.5
W31-X2M5G-10
W31-X2M5G-15
W31-X2M5G-20
W31-X2M5G-25
W31-X2M5G-30
W31-X2M5G-35
W31-X2M5G-40
W31-X2M5G-50
W31-X1014-2
W31-X1001-10
W31 X1001-7.5
W31-X1005-15
W31-X1005-10
W31-X1005-5
>>
