Disc Blade Disc Harrow, Rotary Tractor Power Harrow

US$200.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
1Bq
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Blue
Warranty
1 Year
Transport Package
Iron Box
Specification
950*950*2250mm
Trademark
ALL ROUND
Origin
China
HS Code
8432210000
Production Capacity
1000set/Month

Product Description

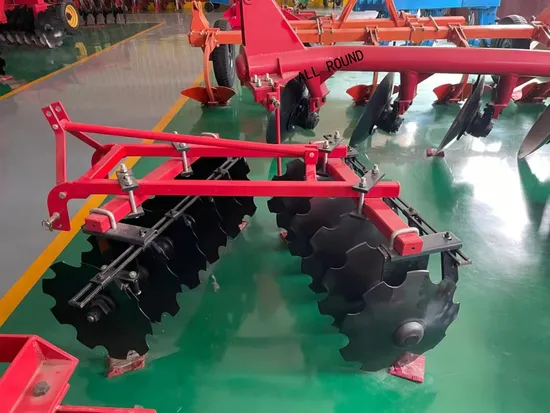

Product Description: Name: Agricultural Equipment 3 Point Mounted Disc Harrow for Tractor Disc Harrow 1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and afterplough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It ismade of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydrauliclifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of theharrow is dramatically improved. Main Feature 1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade. 3)Automatic spray equipment, disk surface smooth color uniform beautiful.
Model 1BQX-1.1 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-1.9 1BQX-2.2 1BQX-3.4
Working Width (mm) 1100 1300 1500 1700 1900 2200 3400
Working depth (mm) 100-140
No. of disc (pcs) 12 14 16 18 20 24 42
Diameter Of disc 460mm/ 18inch
Weight (kg) 200 220 240 260 290 350 1100
Linkage Three-pointed mounted Trailed
Matched power (hp) 12-15 15-18 25-30 30-35 35-40 55-60 80-1


Normal packing or According to your requirement.Safe, complete and fast delivery of goods to customers
