Plastic Coffee Cup Lid Thermoforming Machine

US$26,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DHBGJ-450L
Column number
Four Column
Molding Method
Hydraulic and Servo
Automatic Grade
Automatic
Forming Area
260X450
Raw Material
Pet
Shaping Mode
Die Molding
Application
Machinery & Hardware, Food & Beverage
Driven Type
Pneumatic
Computerized
Computerized
Transport Package
Wooden Packagintg
Specification
SGS
Trademark
DONGHANG
Origin
China
HS Code
8477409000
Production Capacity
50 Sets/Month

Product Description

Feature:
it's a new type one that combines hydraulic and servo working of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It can provide PVS,PS,PET etc.All kinds of covers.
Technical Parameter:
Punching Frequency 20-35time/min
Max.Forming Depth 50mm
Max.Forming Area 260*450mm²
Air-compressor Less than 0.2m³/min
Pressure 0.4-0.7MPa
Power 20Kw
Overall Dimension 4200*850*1700mm
Weight 2000KG

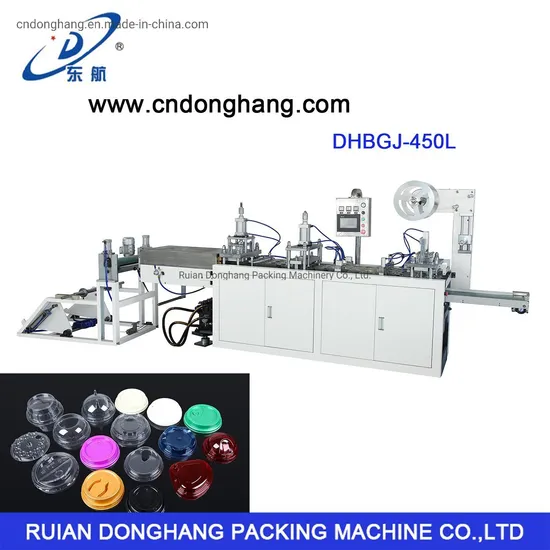

Machine Image:
Sample reference:
Packing and shipping:
