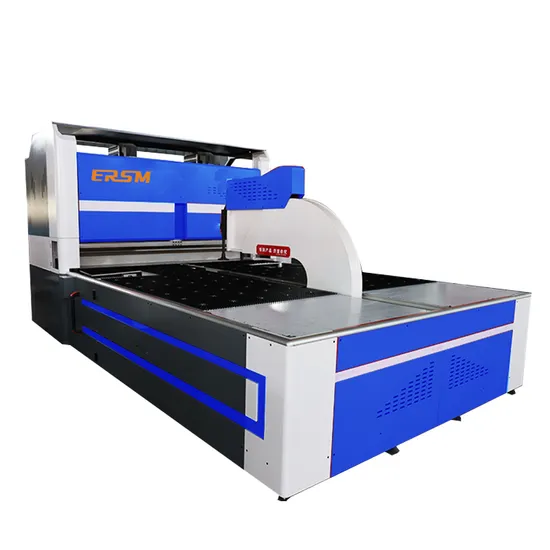

Stable Performance Max. Thickness Carbon Steel 2.0mm Panel Bender Center

Product Description

Produce Features
· Suitable for a variety of bending material (carbon steel, 304 stainless steel, 201 stainless steel, aluminum plate, coated sheet, etc.)
· Full servo control, low energy consumption. Servo-based torque feedback system.
· Muliti-axis linkage control, with a high degree of automation.
· Various feeding and discharging methods (Labour, Robotic arm, Gantry robot, Conveying platform, etc.)
· C-type pressure arm, lead screw multi-link transmission mechanism, pressure adjustment system.
· Easy programming. Operator can customize the design and control of complex sheets according to their needs.
· Flatten hem instructions, press the edge up or down. Arc command, only need input the radius to realize the bending of the arc.
· Three-axis fully automatic positioning system.Multiple positioning.
Product Parameters

Model		BCP-2500-2.0
Feeding Structure		Pressure arm type
Max. Bending Length		2500mm
Max. Thickness	Stainless Steel(SS)	1.5mm
	Carbon Steel (MS)	2.0mm
	Aluminum(AL)	3.5mm
Max. Bending Height		170mm(Customized)
Min. Bending Height		8mm
Min. Inner Size of Four-side Bending		160*240mm
Min. Inner size of One-side Bending		160mm
Min. Arc Radius		2mm
Min. Continuous Bending Speed		0.5s
Bending Angle		-90°-90°, >1.5mm
		0°-180°, ≤1.5mm
Axis		Standard 13 Axis
		15 Axis Can be Customized
Maximum Feeding Speed		120m/min
Equipment Size		6100*3800*2320mm
Total Power		43KW
Average Power		5KW
Workbench Structure		Brush and universal ball

FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.

---
