Zy-801 Functional Coating Dlc Coating Machine

Product Description

EQUIPMENT BRIEF

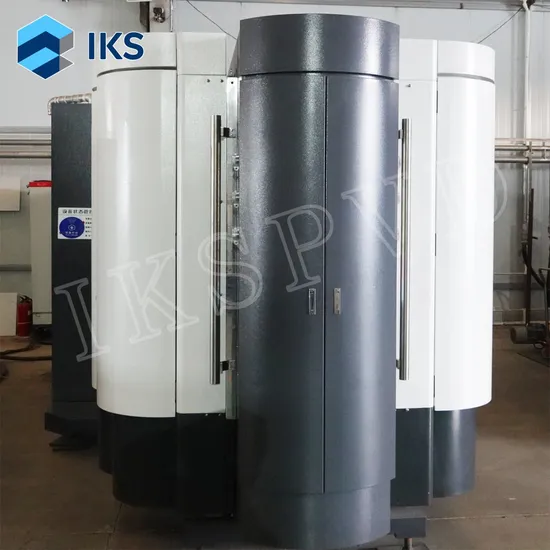

ZY-801 DLC coating machine is a diamond-like coating independently developend by IKS, Using unique ion gun + magnetron sputtering + plasma assisted deposition technology, DLC coating properties between diamond and graphite, The performance is stable quality and the base material bonding force is good, not only has high hardness, but also has excellent friction, good adhesion resistance, corrosion resistance and other excellent comprehensive performance.The equipment is widely used in engine parts,non-ferrous metal cutting, stamping mold and sliding seal parts, medical equipmnet and appliances, textile industry,etc.
EQUIPMENT PARAMETERS

00Chamber Size 00	Double door Octagonal Φ1100×H1300mm	00Effective Space 00	Φ800×H800mm
00Applied Technology 00	CB+SPUTTER+PACVD	00Quantity of Target Material 00	4 Set of rectangular planar target
00Standard Coating 00	DLC	00Other Composite Coating 00	TIN.CrN, WC, etc
00Production Cycle 00	5-7/ 5-7hours/furnace	00Overall Dimension 00	L4200×W2500×H2100mm
00Loading Capacity 0	16Pcs x Φ120mm	00Standard Load 0	350KG
00Rang of Application 00	00Suitable for mold, mold accessories, textile industry, 3C products, parts with a coefficient of friction and other products.

APPLICATION
SHIPMENT
WORK SHOP
IKS PVD Company is committed to providing vacuum coating solutions, vacuum coating machines, various vacuum componets and one-stop vacuum coating services. At the same time, the company also has a strong technical team to provide customers with vacuum equipment core technical support and excellent after-sales service. Please contact us for more details on coating machine configurations and quotations, Thank you!

---
