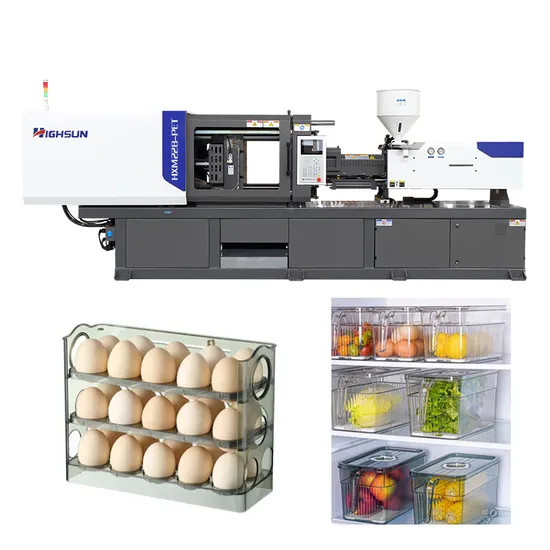

Lower Price High Response New Style Servo Energy-Saving Plastic Injection Molding Machine for Pet Preform Hxm228-Pet

Product Description

PET Series Plastic Injection Moilding Machine
Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
Main feature for PET machine: Enlarged motor & pump system; Special structure and steel for screw & barrel, L/D 24. Enlarged length of machine base. Enlarged ejector cylinder.

MODEL:HX(*)228PET
TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	mm	65
	SCREW L/D RATIO	L/D	24
	INJECTION CAPACITY (THEORETICAL)	cm3	962
	INJECTION WEIGHT(PET)	g	1116
		oz	36
	INJECTION PRESSURE	MPa	156
	INJECTION RATE	g/s	447
	PLASTICIZING CAPACITY	g/s	76
	SCREW SPEED	rpm	190
CLAMPING UNIT	CLAMP FORCE	KN	2280
	OPEN STROKE	mm	520
	MAX. MOULD HEIGHT	mm	580
	MIN. MOULD HEIGHT	mm	200
	SPACE BETWEEN TIE-BARS (W×H)	mm	570*520
	EJECTOR FORCE	KN	100
	EJECTOR STROKE	KN	160
	EJECTOR NUMBER	n	9
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	38
	HEATING POWER	KW	22.7
	MACHINE DIMENSION (L×W×H)	m	6.5*1.34*2.10
	MACHINE WEIGHT	t	6.9
	OIL TANK CAPACITY	L	281

Refernce
Machine: HXM 428-PET Machine: HXM 358-PET
1L bottle preform Bottle preform
Mould: 48 cavities Mould: 48 cavities
Weight: 30 g Weight: 12 g
Cycle time: 22s Cycle time: 17s

---
