3-Point Mounted Tractor Pipe Disc Plough (1LYX Series)

Product Description

3-Point Mounted Tractor Pipe Disc Plough(1LYX Series)
1. About us
Hubei Fotma Machinery Co. Ltd is one of the major suppliers and exporters of farm equipments and tractor implements in China, including various kind of tractor parts, implements and attachements.
Fotma got the certificate of ISO9001: 2000 and most of our farm implements are CE approved for USA and Europe respectively, which have been recognized by all countries in the world. We have business with over 100 countries in the world. We will be glad to work with the new partners worldwide. We will continue to keep to our strategic target of superior quality, low cost and globalized farm equipment, and adopt a management approach characterized by higher standards, full precision and itemization, and zero defects, endeavor to offer the world-class brand products and will build one of the most competent industrial bases in the world for Chinese engineering machinery, farm equipment and large industrial equipments.
2. Why choose us?
FOTMA is the leading and professional supplier in China for various kinds of agricultural implements!
FOTMA has over than 15 years experience with agricultural machines!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 14 year Gold Member at Made In China!
3. Product description
1LYX series disc plough is used for deep ploughing in root-infested, sticky, stony, and hard soils. Mixes remains of crops and weeds throughout the depth of ploughing, hence it is ideal for rain-fed areas for checking soil erosion by water and wind. Spring loaded floating rear furrow wheel control the side draft to ensure straight work and ease of handling by smaller tractor. Other features include taper roller bearing in disc hubs, disc angle adjustable to vary the penetration with varying soil conditions, Cat I and II linkage and the disc scrapers are also adjustable to ensure that the discs remain clean in all conditions.
4. Features
1. High carbon disc blade hardness: 38-44HRC, assuring the toughness and wear ability of disc blade.
2. Frame type tubular seamless steel pipe.
3. In conformity with the soil conditions it is being produced with 2, 3, 4, 5 disc bottom version with an option for extra kit for converting it to extra disc plough.
5. Technical parameters

Model(unit)	1LYX-230	1LYX-330	1LYX-430	1LY-530
Working width(mm)	600	900	1200	1500
Working depth(mm)	200-300	200-300	200-300	200-300
Disc diameter(mm)	660	660	660	660
Q'ty of disc(pcs)	2	3	4	5
Total weight(kg)	300	430	480	550
Matched power(hp)	40-50	55-80	90-100	120
Linkage	Three-point suspension II type

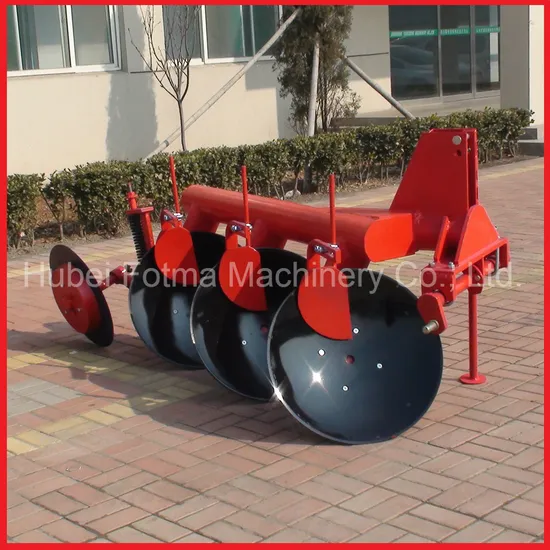

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipment
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.

---
