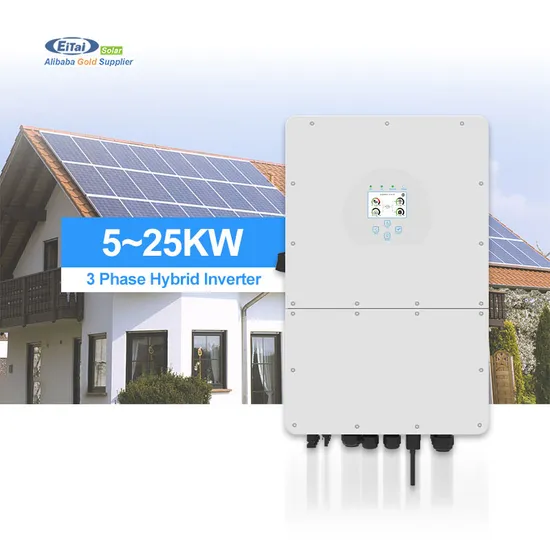

Deye MPPT 10kw 12kw 15kw 20kw 25kw Solar Hybrid Inverter

US$1,386.00
1-9 Pieces
US$1,276.00
10+ Pieces

Basic Info.

Model NO.
SUN-5/6/8/10/12/15/20K-SG01HP3-EU-AM2
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
CE, IEC
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Battery Type
Lead-Acid or Lithium-Ion
Battery Voltage Range (V)
160-700V
Charging Strategy for Li-Lon Battery
Self-Adaption to BMS
Max DC Input Power(W)
6500W-32500W
Max DC Input Voltage (V)
1000V
Start-up Voltage (V)
180V
MPPT Range (V)
150-850V
Rated DC Input Voltage (V)
600V
No.of Mpp Trackers
2
Rated AC Output and UPS Power (W)
5000W-25000W
Max. AC Output Power (W)
5500W-27500W
Output Frequency and Voltage
50/60Hz;3L/N/PE;220/380V;230/400V
Grid Type
Three Phase
Max Effciency
97.60%
Euro Effciency
97.00%
Transport Package
Wooden Box / Carton Packing
Specification
408x638x237mm
Trademark
DEYE
Origin
China
HS Code
8543709990
Production Capacity
10000units/Day

Product Description

Product Description
Product Parameters
Model SUN-5K-SG01HP3-EU-AM2 SUN-6K-SG01HP3-EU-AM2 SUN-8K-SG01HP3-EU-AM2 SUN-10K-SG01HP3-EU-AM2 SUN-12K-SG01HP3-EU-AM2 SUN-15K-SG01HP3-EU-AM2 SUN-20K-SG01HP3-EU-AM2 SUN-25K-SG01HP3-EU-AM2
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range (V) 160~700
Max. Charging Current (A) 30 37 50
Max. Discharging Current (A) 30 37 50
Number of Battery Input 1
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 6500 7800 10400 13000 15600 19500 26000 32500
Max. DC Input Voltage (V) 1000
Start-up Voltage (V) 180
MPPT Range (V) 150-850
Full Load DC Voltage Range (V) 195-850 340-850 325-850 340-850 420-850 500-850 625-850
Rated DC Input Voltage (V) 600
PV Input Current (A) 20+20 26+20 26+26
Max. PV Isc (A) 30+30 39+30 39+39
No.of MPP Trackers 2
No.of Strings per MPP Tracker 1+1 2+1 2+2
AC Output Data
Rated AC Output and UPS Power (W) 5000 6000 8000 10000 12000 15000 20000 25000
Max. AC Output Power (W) 5500 6600 8800 11000 13200 16500 22000 27500
AC Output Rated Current (A) 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4 22.8/21.8 30.4/29 37.9/36.3
Max. AC Output Rated Current (A) 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2 25/24 33.4/31.9 41.7/39.9
Max. Three-phase Unbalanced Output Current(A) 13 13 18 22 25 30 35 41.7
Max. Continuous AC Passthrough (A) 40 80
Peak Power (off grid) 1.5 time of rated power, 10 S
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type Three Phase
Total Harmonic Distortion (THD) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certififications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (ºC) -40-60ºC, >45ºC Derating
Cooling Smart Cooling
Noise (dB) ≤55 dB
Communication with BMS RS485; CAN
Weight (kg) 30.5
Cabinet Size (WxHxD mm) 408×638×237 (Excluding Connectors and Brackets)
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 Years (10 Years Optional)
