Competitive Price Barrier-Free Disabled Stair Platform with CE Certificate

Product Description

Competitive Price Barrier-Free Disabled Stair Platform with CE Certificate
product description:
L-150 screw type barrier-free lifting platform is a vertical multi-functional lifting platform driven by steel structure frame and precision screw.Products can be made in the range of 2000mm or less according to customer needs.The safe performance and pit-free installation design bring the convenience of barrier-free access construction and elevator-like enjoyment to customers.This product is widely used in public places such as residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals, etc.;It has the characteristics of novel design, safe and smooth, beautiful appearance, low noise, low temperature resistance and so on. It is well received by customers at home and abroad.
Factory Introduction:
Boonai (Suzhou) Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work platform, providing package service for design, production, sales and after-sales
There is an experienced team that takes care of every process for design, production and quality control and dedicated to providing the clients with excellent work.
Features:
It has the characteristics of novel design, safe and smooth, beautiful appearance, low noise, low temperature resistance and so on.
Dimensions of L-150 Lifting Platform:
L-150 lifting platform 90° in and out diagram:
L-150 lifting platform 180° in and out diagram:
L-150 multi-function lifting platform main technical parameters and function configuration

Power	220V/50HZ	Motor Power	0.75kw, 1.5kW 220V/AC
Overall dimensions	1768mm × 1290mm × H+600mm (length, width and height)	Lift control	Rocker self-reset switch operation
Lifting base plate size	1370mm(length)×922mm(width)	Outbound call form	The upper and lower outbound call columns are installed on the ground attached to the stop floor and run on the equipment linkage control platform
Maximum lift height	6000mm	Applicable environment	Indoor or Outdoor
The minimum height of the lifting base plate	80mm (from the ground)	Proper temperature	-20°C-60°C
Installation method	No foundation pit installation (directly fixed on the C30 concrete level ground, the thickness of the concrete is not less than 200mm)	Equipment appearance	Use 304 stainless steel wire drawing board for exterior decoration or standard model polymer isolation film covering
Lifting speed	70mm/s (hydraulic drive) 40mm/s (screw drive)	Safety rocker	When the equipment is running up, the rocker is automatically tilted to prevent the wheelchair from sliding out of the platform
Maximum load	250kg (European and American standard)	Fall protection	Main and auxiliary nut relying on transmission, joint control operation and anti-fall protection
Guard form	90° configuration or 180° configuration	Overload protection	Overcurrent relay control
Rocker working angle	75°	Emergency stop	Press the emergency button switch to control the machine to run up and down the ball
Drive mode	Hydraulic drive or precision screw drive	Emergency descent	Manual crank handle emergency lowering
Control supply voltage	24V/DC	Safe net	When the lifting bottom plate descends, the safety net below will stop running immediately when it encounters an obstacle and descend

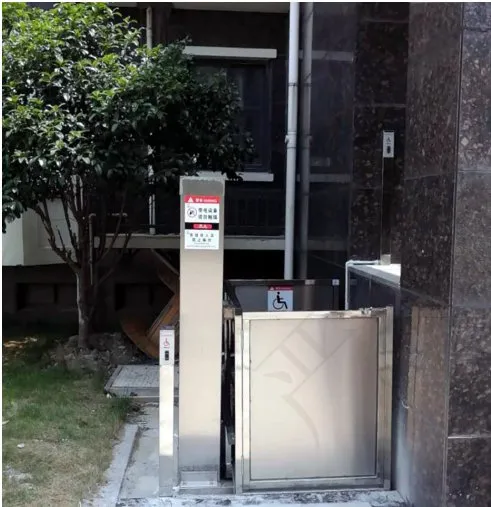

Reference case (stainless steel color and steel plate coating)
Company Certificates Part of Customers
Package and Transportation
Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holidaysm engineers are available to your company if necessary.

---
