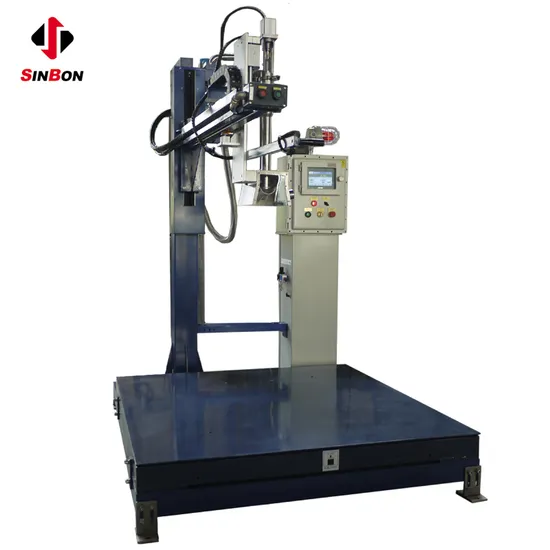

200L Drum Filling Machine for 4 Drums on One Pallet

Product Description

Product Description
FEATURES
Use famous Proface touch screen and FATEK PLC control, easy to operate and working reliable
All the parameters can be setting on touch screen,easy to edit
It has automatic filling and manual filling mode for choice
Statistics functions include history records of filling, alarm records and cumulative count
Two stages filling speed (fast/slow) can ensure good filling accuracy
Automatic freefall weight compensation function improve filling accuracy
Based on different liquid, use different filling methord such as filling on above the liquid surface or filling underneath liquid surface from drum bottom to reduce the foam generate or overflow
Use penumatic filling nozzle with an drip cup to avoid liquid leakage
Use flange or NPT connect ion, fast and easy to connect with user's infeed pipe
Bump protection function to avoid nozzle broken when nozzle did not align with drum hole
All the liquid contact parts are stainless steel 304 (SS316 material for option), non-contact parts are painted steel or aluminium alloy structure
Interlock safety protection function
Anti-explosive Level: ExdIIBT4, suitable for working in Class 1,Division 2, anti-explosive zones A,B,C,D
APPLICATION
Drum Filling Machine is based on weighing scale to measure liquid weight filled into all kinds of containers, such as drum, IBC etc.
Widely used in chemical, food, pesticide industries etc.
Suitable for filling Coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products etc.
SPECIFICATION

Model No.	BDF-1200L4
Filling Range	50-1500kg
Filling Mode	Top Filling
Connection Mode	DN50 Flange or NPT (Liquid infeed pressure <6Mpa)
Filling Accuracy	±0.1% F.S. (Depends on slow feeding settting and liquid infeed status)
Production Capacity	200L drum, 40-60 drums/hour; 1000L IBC, 6-10 IBC/hour (Liquid infeed speed must be 20 cubic meter per hour at least)
Penumatic Nozzle	Stainless steel 304 nozzle
Weighing Platform Size	1500(L)x1500(W)mm
Power Source	AC220V;50Hz;1P;10A
Air Source	4-6kg/m2
Packing Size	2250(L)x1700(W)x2370(H)mm
Weight	N.W.:550kg; G.W.: 760kg
